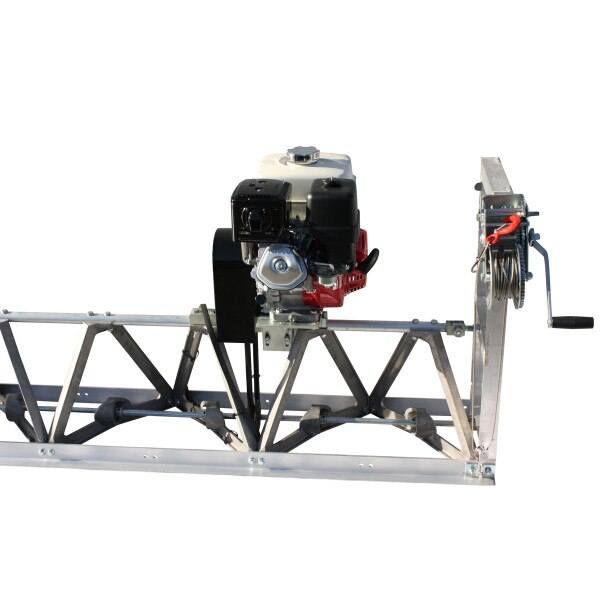

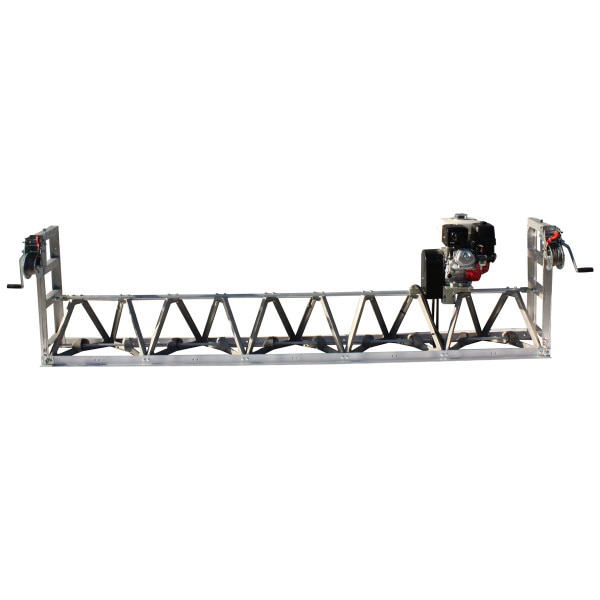

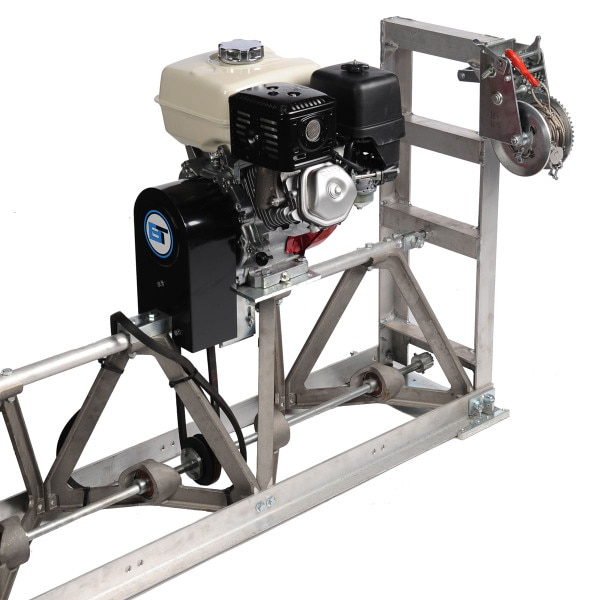

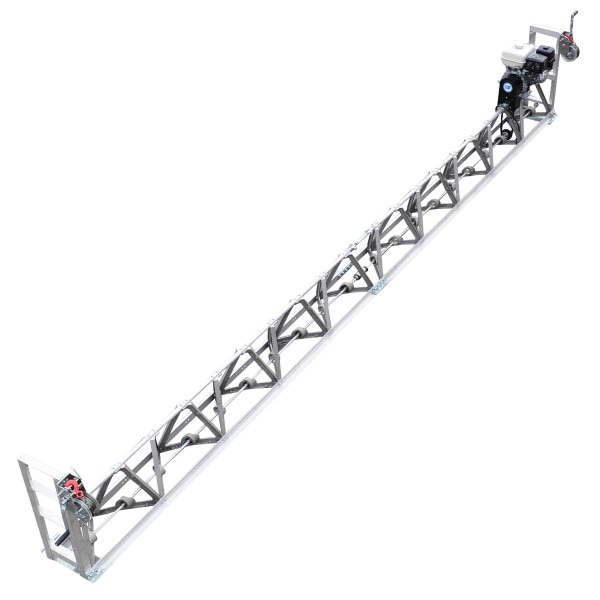

Wide Bay Truss Screed Power Section Powered by GX270 c/w End Handles and Cable Winches 2.54m (~8'4") (BTSUPBASE254H)
PRODUCT DETAILS
Beton Trowel Wide Bay Truss Screed with 2.54m (~8'4") Power Section Powered by GX270. Includes End Handles and Cable Winches.
- Built in sections to maximum length of 15m per engine
- All aluminum frame construction with unique cast frame for strength, lightness, and rigidity
- Bolted frame construction eliminates weld failure and allows easy alignment and easy low-cost replacement of damaged parts
- Powerful combination of vibration frequency and amplitude for excellent concrete compaction and removal of air voids
- Heavy duty winches for ease of operation, also hydraulic winch as an option
- Quick coupling system
- Floor accuracy to +/- 3 mm across the floor (subject to correct setting up of floor rails)
Specifications
| Section Length Option | 10 ft (3.15m) 8ft (2.54m) 5 ft (1.52m) 2.5 ft ( .76m) |
| Section Width | .38m |
| Section Height | .40m |
| Weight Per M | 12 Kg |
| Eccentric Vibration Shaft Speed | 2800 RPM |
| Centrifugal Force/Unit Length | 220 N/M @ 2800 RPM |
| Power Section Includes | Honda GX270 9 HP Power Kit, end handles complete with winches and cables |
