Trash Pump, 23 HP 904 cc Kohler Diesel (KTD-150)

(0)No Reviews yet
SKU: KTD-150

This item is OUT OF STOCK

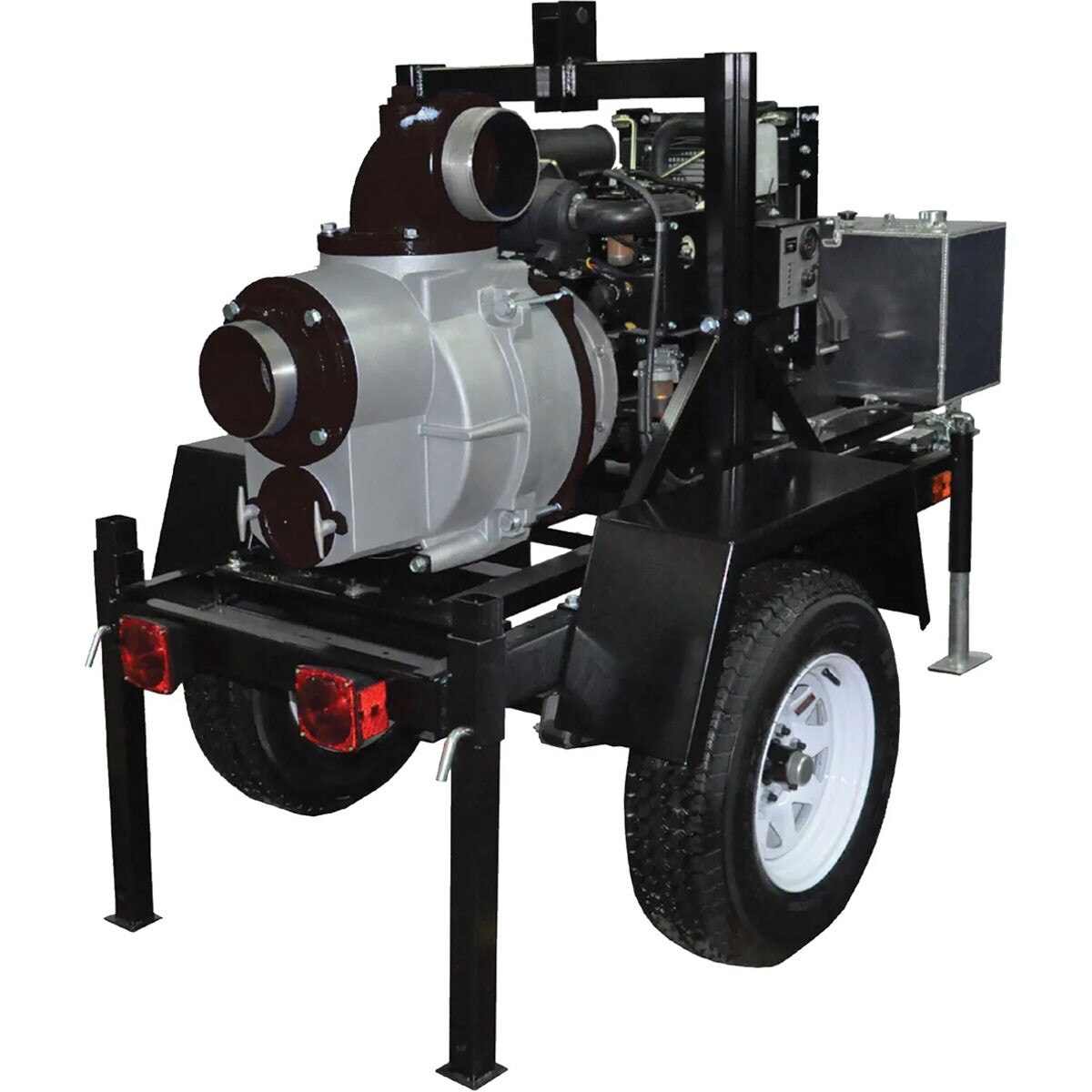

The Koshin KTD-150 Trailer Mounted Trash Pump, ideal for agricultural, construction, municipal/industrial applications and high volume suspended solids dewatering.

  • 6 in Trash Pump on Trailer
  • 23 HP 904 cc Diesel Engine
  • Max Out 1000 GPM
  • Max Head 98 ft.
  • Great for Industrial, Construction, Landscape Municipal, Civil Engineering, and High Volume
  • Silicon Carbide Mechanical Seals
  • Stainless Steel Impellers
  • Solids Handling up to 3" in Diameter
  • Easy to Remove Clean Out Cover
  • Unique Pump End One Man Slide Mechanism Allows Pump Service without Removing Hoses
  • Engines with Electric Start and Low Oil Shut Off
  • Maximum Liquid Temperature of 180 Degrees F
  • Tools Included for Pump Service
  • D.O.T. Approved Trailer Standard (See your State and Local Codes for Registration)
  • Pump Repair Parts Available Through KOSHIN
  • Battery Not Included (group size 24)
  • One Year Warranty


Suction, Discharge Size6" NPT
Maximum Output1000 GMP
Maximum Discharge Head98 ft.
Maximum Suction Lift26 ft.
Maximum Pressure40 psi
Engine ModelKohler KDW1003
Engine Displacement1028 cc
Engine Horse Power23.4 HP
Fuel Tank Capacity20 gal.
Full Load Run Time12 hours
Fuel TypeDiesel
Packaged Weight1250 lbs
Packaged Dimensions (LxWxH)77" x 55" x 65"
