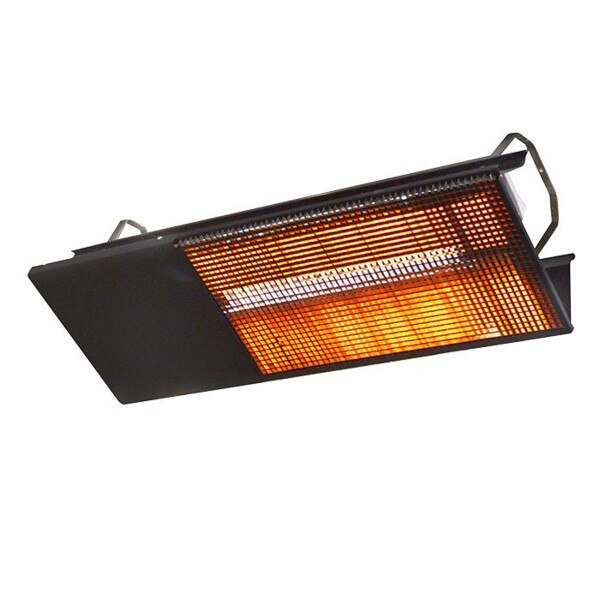

30,000 BTU Overhead High-Intensity Restaurant / Patio Heater (Propane) (F140627 / HSRR30SPLP)

(0)No Reviews yet
SKU: F140627

This item is IN STOCK

Current Stock: 1

PRODUCT DETAILS

Enjoy instant, cost-saving comfort. Like the rays of the sun, infrared heaters heat floor-level objects, which in turn, heat surrounding air to the desired temperature. The HeatStar HSRR30SPLP High Intensity Radiant Heater is designed for use on patios, at restaurants and anywhere overhead heating is needed in windy and cool conditions. The decorative black color is designed to blend in so these heaters are only noticeable by the comfortable heat they provide. This specific model is equipped with Spark Ignition and runs on natural gas. Mounting brackets for a 45-degree installation are included. It operates with 24V or 120V thermostats (sold separately). Comes with a 3-year limited warranty on the burner assembly.


  • Designed for outdoor restaurants or patios where comfortable heat is needed in breezy and cool conditions
  • For use with Liquid Propane
  • Discreet design with black, satin-gloss painted body and reflectors
  • Built with corrosion-resistant materials
  • Features decorative grate to protect burners from damage and to guard against the wind
  • With an additional, optional burner orifice you can increase or decrease the output of the heater (optional orifice #05443, sold separately)
  • Spark ignition heaters ship with 120V 24V /40VA transformers
  • Heater is mounted horizontally or at a 45 degree angle (brackets included)
  • Operates with 24V or 120V thermostats (item #10371, sold separately, not included)
  • No direct venting required

Specifications

ModelHSRR30SPLP (F140627)
Weight27 lbs
Fuel TypePropane
IgnitionElectronic
Electrical Rating120V / 60Hz
Electrical ConnectionTransformer
Transformer IncludedYes
Gas Inlet Connection1/2in ID FPT
Gas Inlet Pressure Min11in WC
Gas Inlet Pressure Max14in WC
Mounting Height Range10ft - 12ft
Clearance to Combustibles: HorizontalTop 30in; Side 30in; Back 30in; Below 54in
Venting RequiredNot Required
Thermostat OptionalYes
Item Length48.25"
Item Width20.5"
Item Height13.25"
Warranty: Gas Control1 Year Limited
Warranty: Burner10 Year Limited Pro-Rated
