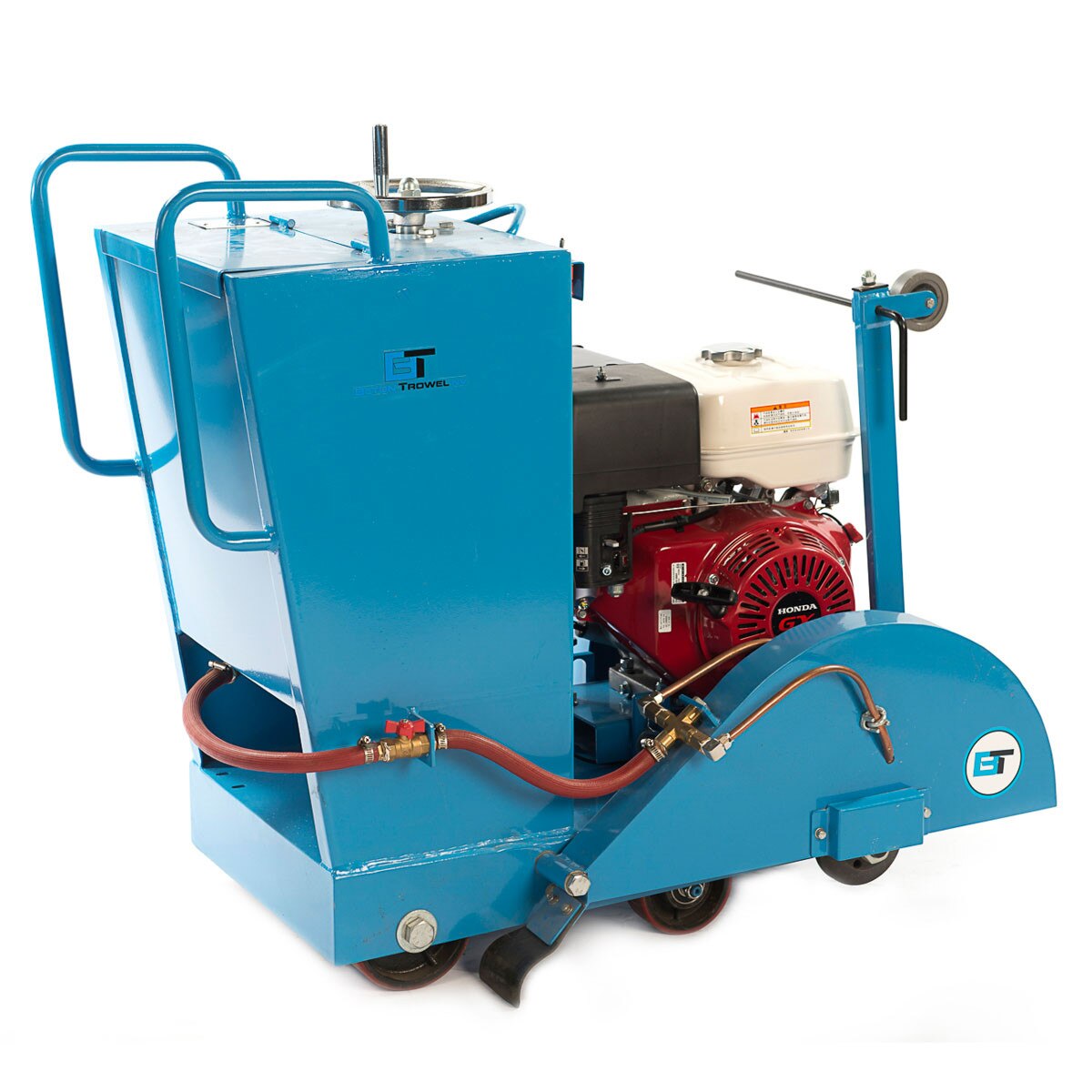

Concrete Saw, Max Blade Capacity 500mm (~18"), Honda GX390 (BTCS500H390C)
PRODUCT DETAILS
The Beton Trowel BTCS500H390C Concrete Saw is a strong & powerful machine for Green Concrete cutting and all types of repair work on both Concrete & Asphalt surfaces.
- Water tank position puts weight forward over blade to assist with clear effective cut
- Applies just the right amount of pressure to the blade for maximum cutting effect
- Recessed rear wheels
- Rigid front pointer to assist straight & accurate cut
- Heavy duty jig welded steel construction
- Easy and accurate handling
- Easy maintenance
Specifications
| Model | BTCS500H390C |
| Engine | Honda GX390 13HP (9,6 Kw) |
| Starter | Recoil |
| Max Blade | 500mm |
| Blade Bore | 25.4mm |
| Max Depth | 190mm |
| Blade Speed | 2600 RPM |
| Drive Belts | 4 |
| Water Tank | 70 L |
| Water Flow | Dual Sides of Blade |
| Dimensions (L x W x H) | 43" x 23" x 36" |
| Dry Weight | 140 kg |
| Sound Pressure | 89 LPA (dB) |
| Sound Energy | 105 LWA (dB) |
| Hand Arm Vibration | 4,22m/s ? |
| Sound Pressure | 89 LPA (dB) |
