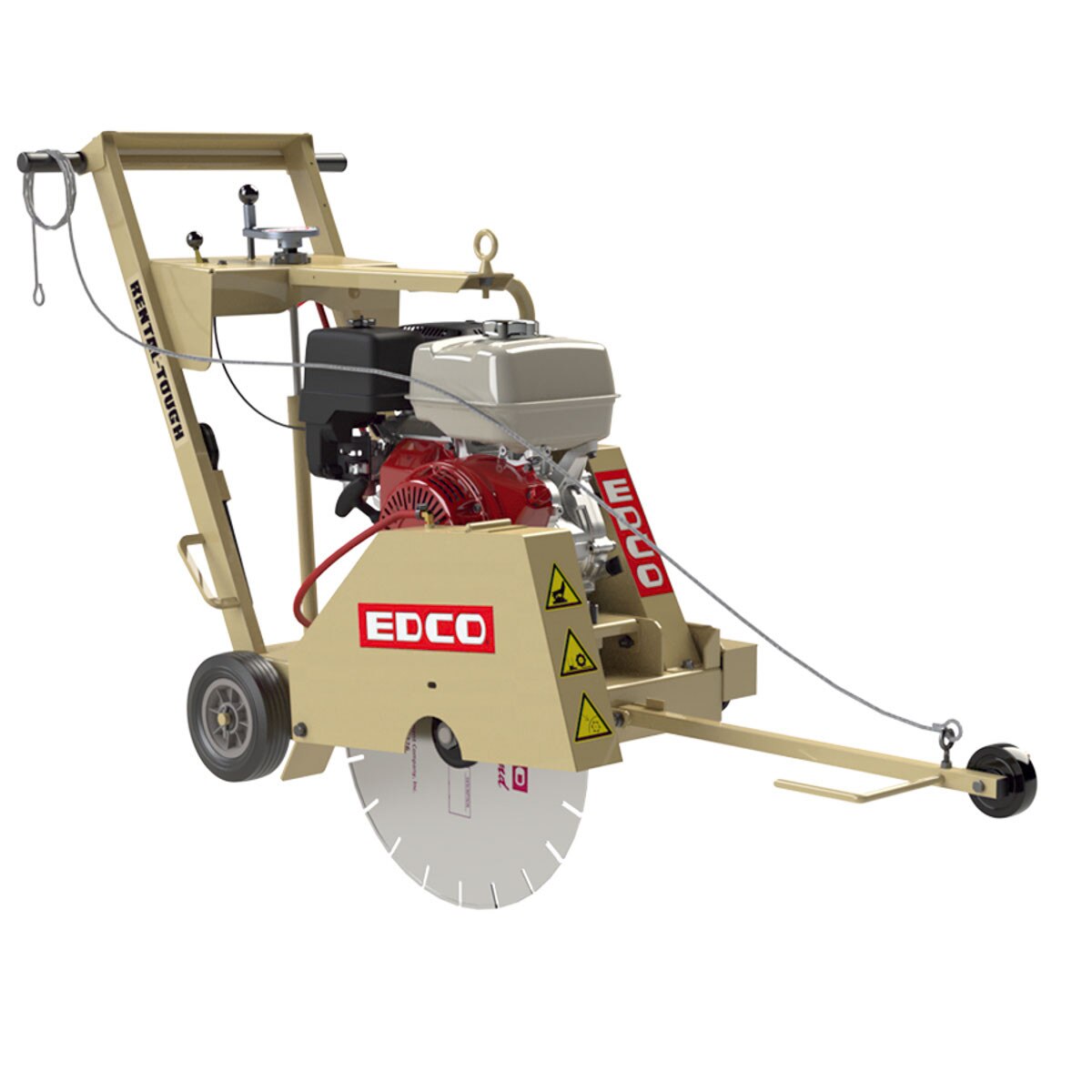

20" Walk Behind Saw, 13 HP Honda GX390 (DS20 / 30100-ED)
PRODUCT DETAILS
EDCO Walk-Behind Flat Saws solve short-run cutting applications including utility installation, road repair, and trenching. This 20" Saw is EDCO’s premium model. Features include protected throttle cable, easy turn depth handwheel, strong lifting points, EDCO’s anti-vibration engine mount that helps the blade cut straight, and a cutting depth of 7-3/4"
- Powered by Honda GX390 13 HP engine
- 20" Blade Capacity
- New & Improved throttle cable
- Easy turn crank, for lowering and raising blades in and out of cut
- Heavy-Duty Anti-Vibration engine mount
- Screw boot belt tensioner prevents frame damage
- 7-gauge steel blade guard with welded protective segment flap
- Heavy-Duty lifting bail for easy loading and unloading
- Heavy-Duty 7-gauge steel laser cut frame
- Large screw-type depth control
- Wide-T handles with rubber grips
- Solid-Steel lifting handles
- High quality molded rubber wheels
Specifications
| Model | 30100-ED |
| Power | Gasoline |
| Engine | Honda GX390 |
| Horse Power | 13 HP |
| RPMs | 3,000 |
| Length | 50" |
| Width | 24.5" |
| Height | 39" |
| Weight | 265 lbs |
| Max Cut - Depth | 7.75" |
| Belts | Cgd "V" Belt |
