  • Magna-Trap Dual Disc Floor Grinder 3 HP, 230V (2EC-NG-3HP / 59600-ED)

Magna-Trap Dual Disc Floor Grinder 3 HP, 230V (2EC-NG-3HP / 59600-ED)

(0)No Reviews yet
SKU: 59600-ED

This item is OUT OF STOCK

PRODUCT DETAILS

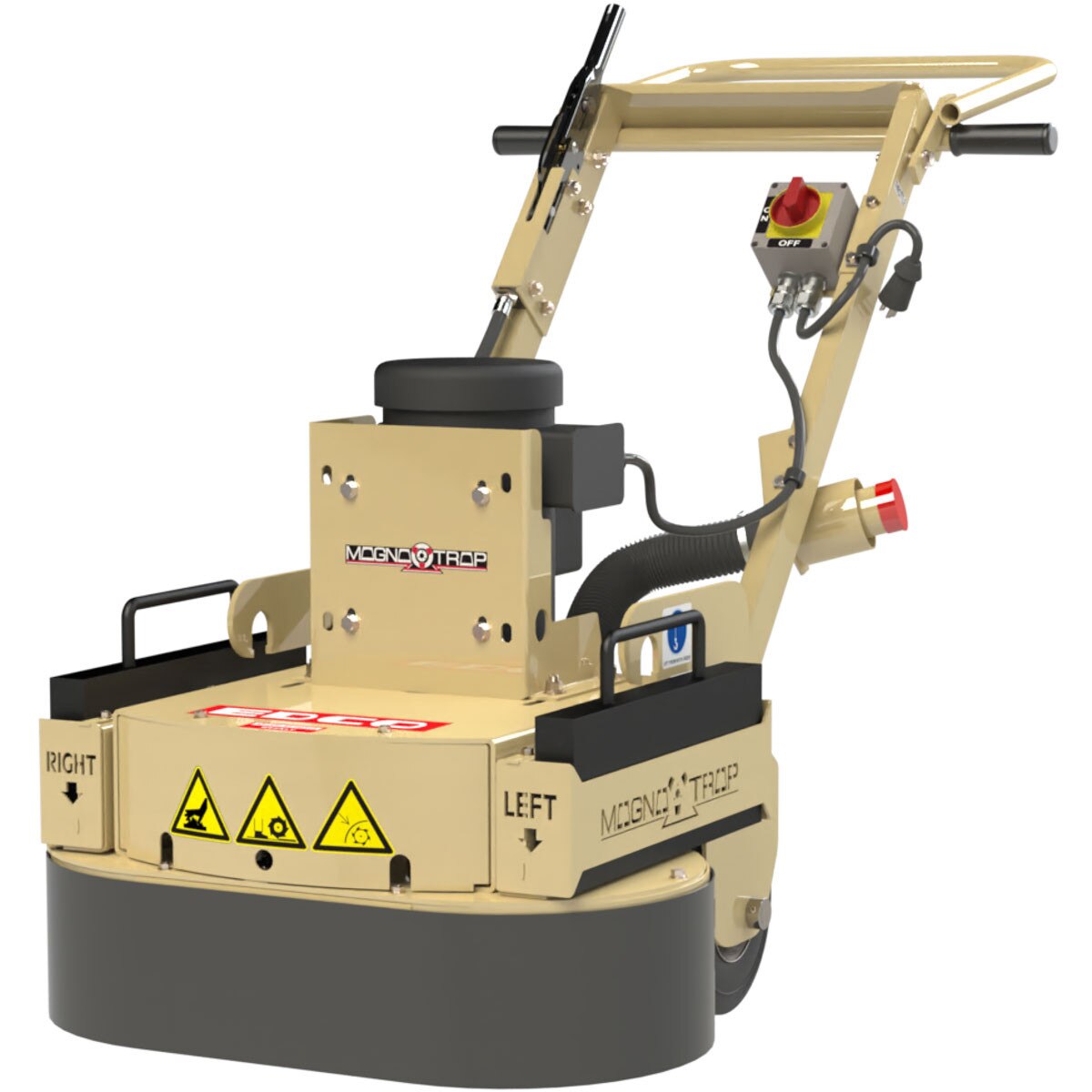

The EDCO Magna-Trap Dual-Disc Floor Grinder. Floor Grinders solve first layer applications like smoothing concrete, preparing floors for new coverings and removing thinner coatings, soft materials and ice. This dual-disc model grinds approximately 500sqft per hour.


  • Grind Wedge-less: The need for wooden wedges goes away with EDCO’s Magna-Trap Slide-On Tooling.
  • Grind Level: Using EDCO’s exclusive Leveling System you can adjust the machine’s height, use a wide range of tooling, and truly grind level. Level grinding is quicker, smoother, easier on the operator, and increases tooling life.
  • Velcro Dust Shroud: This new heavy-duty Velcro Dust Shroud makes dust prevention easier. Simply readjust the shroud according to the height of the tooling being used.
  • Laser-Cut Weight Tray: This built-in weight tray accepts up to 80lbs. of extra weight!
  • Multi-Vac port for use with 2" or 3" vacuum hose
  • 21.5" working width will grind approximately 400-500 sq.ft. per hour at 1/32" with diamond tooling
  • Gas & electric power options available
  • Includes 2 magnetic multi-tooling discs, which accept Dyma-Serts, Strip-Serts and all other Magna-Trap grinder tooling
  • Counter-rotating discs prevent machine from pulling side to side and give operator greater control
  • 6 grinding tools required per loading

Specifications

Model59600-ED
PowerElectric
Horse Power3 HP
Voltage230 V
Amps15A
RPMs231
PhaseSingle Phase
Length46"
Width27"
Height39"
Weight260 lbs
Max Cord Length100 ft, 10 Gauge
