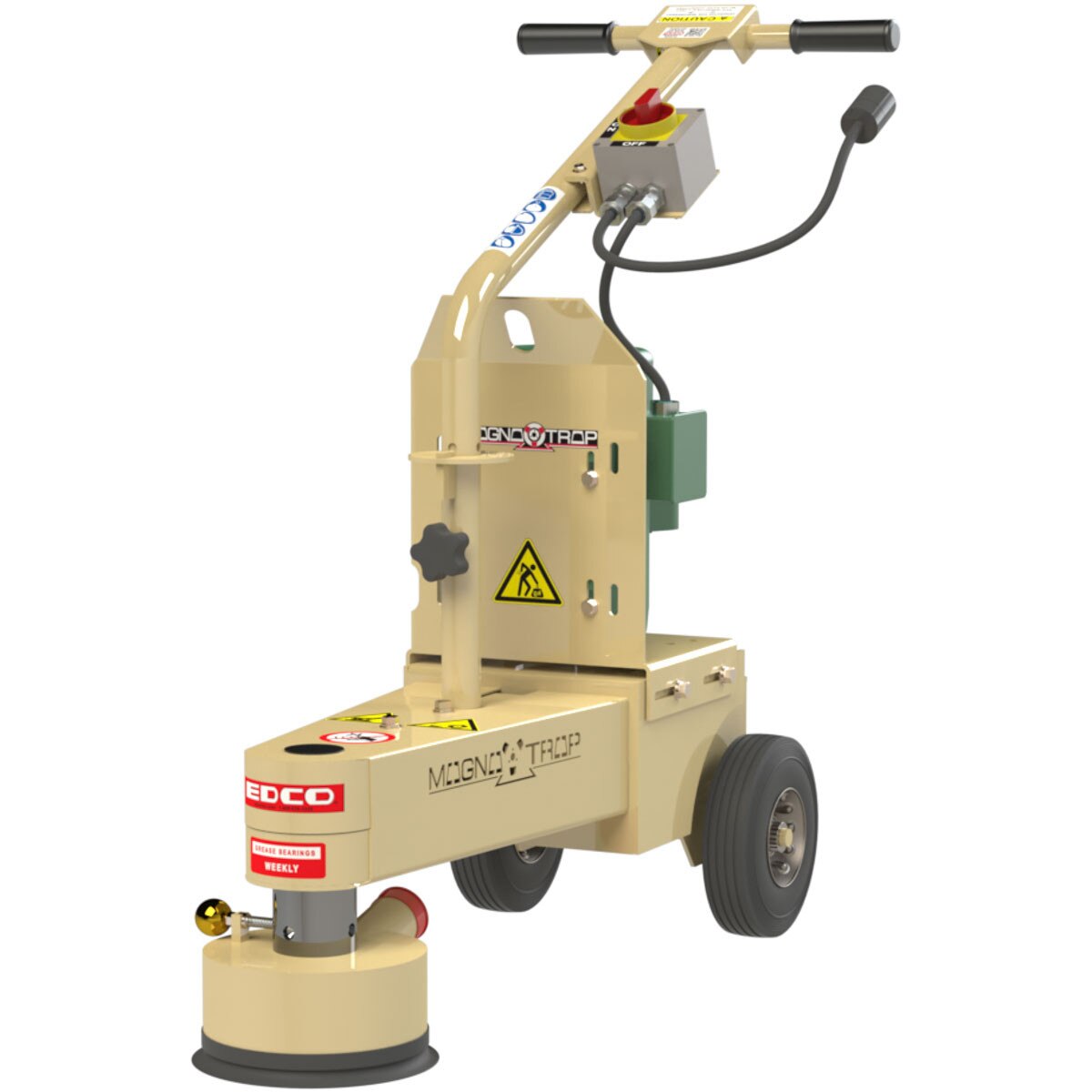

7" Magna-Trap Edge Turbo Grinder 2 HP/115V (TMC7E / 57200-ED)
PRODUCT DETAILS
The EDCO Magna-Trap 7" Turbo / Edge Grinder. This unique edging machine grinds concrete all the way to walls, poles, and stationary objects. It resurfaces small, hard-to-reach areas eliminating hand grinding. Turbo Grinders remove thick coverings, level uneven areas, and solve other industrial application problems.
- Three-position articulating frame adjustment for left angle, right angle or straight position grinding
- Four-position dust shroud allows flush grinding against any vertical surface in the left angle, right angle or straight position
- Multiple-position handle assembly allows the operator to work behind the unit for edge grinding or in front of the unit and control the amount of grinding pressure applied
- Adjustable tubular handle construction provides operator maximum grinding flexibility and allows for complete clearance of any vertical surface
- Available with 5.5 HP gasoline engine or with 2.0 HP electric motor
- Comes standard with Flex Head Assembly, but is also available with optional Rigid Head Assembly for doing gutter work.
- New & improved tapered roller bearings provide less maintenance and longer life
Specifications
| Model | 57200-ED |
| Power | Electric |
| Horse Power | 2 HP |
| RPMs | 1,740 |
| Phase | Single Phase |
| Voltage | 115/230 V |
| Amps | 9.2/18.4 A |
| Length | 40" |
| Width | 24" |
| Height | 38.5" |
| Weight | 130 lbs |
| Belts | Std "V" Belt |
