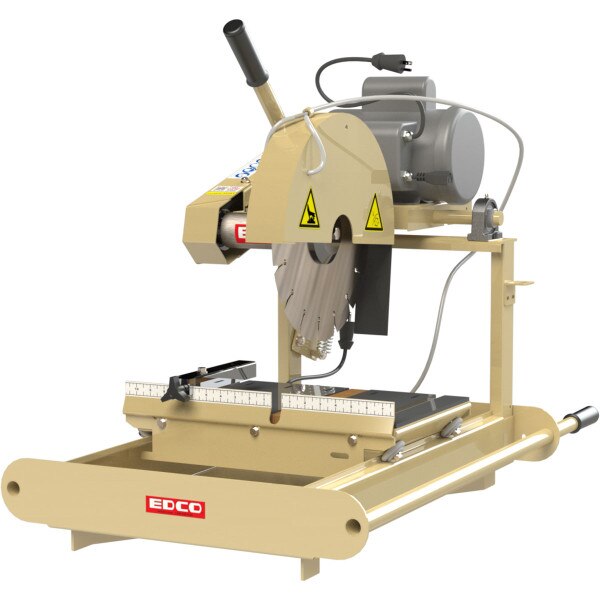

14" Masonry Saw, 1.5 HP/115/230V/1 Phase/60Hz Electric (BB14E / 22300-ED)
PRODUCT DETAILS
EDCO Masonry Saws are used for all kinds of installation applications like patios, landscaping, and decorative/commercial builds. This BB14 has an easy-cut guiding table. With its optional Pro-Cart allows operators to work standing or from the ground.
- Electric powered
- Rolling table will accommodate 16" blocks
- Portable model with 14" blade capacity
- Universal cutting table with water drain holes and centered wood block eliminates cutting through tables
- Rounded blade guard with splash proof protection
- Side-Mounted handles for balanced lifting load
- Vacuum hookup optional for dust-free cutting
- 1/4" steel arbor wrench with saw-mounted wrench holder
- Adjustable cutting head can be used manually or locked in a fixed position
- Quick adjusting heavy-duty bearing assemblies for easy blade alignment
- Optional expandable ProCart available (Not Included)
- Optional folding upright stand available (Not Included)
Specifications
| Model | 22300-ED |
| Power | Electric |
| Horse Power | 1.5 HP |
| RPMs | 3,450 |
| Phase | Single Phase |
| Voltage | 115/230 V |
| Amps | 7/14 A |
| Length | 43" |
| Width | 25" |
| Height | 32" |
| Weight | 165 lbs |
| Max Cut - Depth (Fixed) | 5" |
| Max Cut - Depth (Chop) | 5" |
| Belts | Std "V" Belt |
