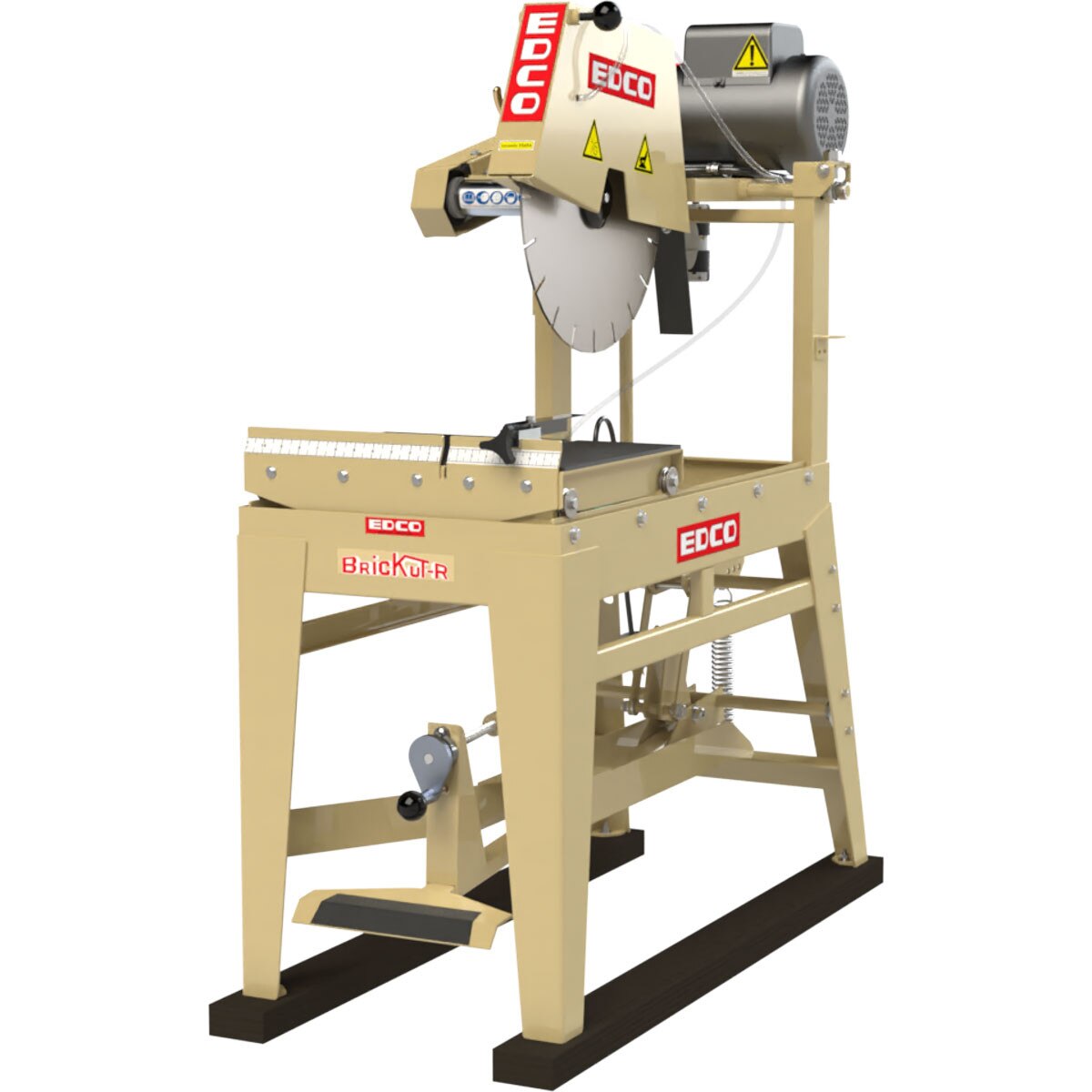

20" Masonry Saw, 7.5 HP/3 Phase/60Hz Electric (MS20E / 21300-ED)
PRODUCT DETAILS
EDCO Masonry Saws are used for all kinds of installation applications such as patios, landscaping, and decorative/commercial builds. Users cut with this 20" saw by using the hands-free foot pedal. You can cut a block up to 8" on both sides.
- Electric powered
- Freestanding model with 14" to 20" blade capacity
- Large capacity, 3-stage air filter protects from wear
- Belt driven diaphragm water pump is standard and can be disconnected when cutting dry
- Fixed or adjustable cutting head for extra versatility
- Extra-large rolling table supports large materials and rolls easily
- Double-sided table rails are easy to replace
- Standard foot pedal for hands-free operation
- Patented fixed engine platform
Specifications
| Model | 21300-ED |
| Power | Electric |
| Horse Power | 7.5 HP |
| RPMs | 2,500 |
| Phase | Three Phase |
| Voltage | 230/460 V |
| Amps | 8.7/17.4 A |
| Length | 55" |
| Width | 26" |
| Height | 63" |
| Weight | 455 lbs |
| Max Cut - Depth (Fixed) | 8" |
| Max Cut - Depth (Chop) | 16" |
| Belts | Cgd "V" Belt |
