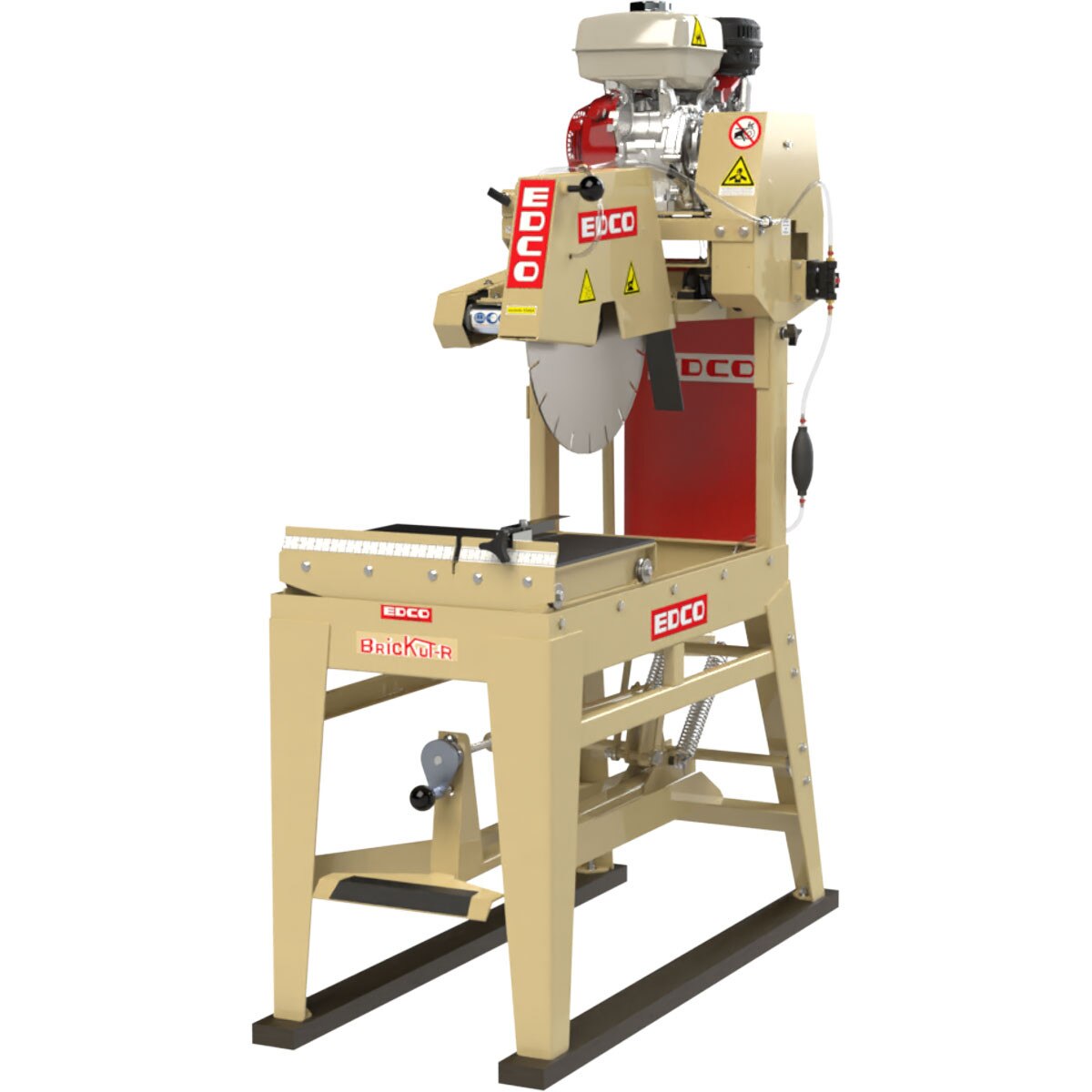

20" Masonry Saw, 9 HP Honda GX270 (GMS20 / 22500-ED)
PRODUCT DETAILS
EDCO GMS-20-9H Masonry Saws are used for all kinds of installation applications such as patios, landscaping, and decorative/commercial builds. Users cut with this 20" saw by using the hands-free foot pedal. You can cut a block up to 8" on both sides.
- Gasoline powered
- Freestanding model with 14" to 20" blade capacity
- Large capacity, 3-stage air filter protects from wear
- Belt driven diaphragm water pump is standard and can be disconnected when cutting dry
- Fixed or adjustable cutting head for extra versatility
- Extra-large rolling table supports large materials and rolls easily
- Double-sided table rails are easy to replace
- Standard foot pedal for hands-free operation
- Patented fixed engine platform
Specifications
| Model | 22500-ED |
| Power | Gasoline |
| Horse Power | 9 HP |
| RPMs | 2,400 |
| Phase | Three Phase |
| Length | 58.5" |
| Width | 26" |
| Height | 75.5" |
| Weight | 480 lbs |
| Max Cut - Depth (Fixed) | 8" |
| Max Cut - Depth (Chop) | 16" |
| Belts | Std "V" Belt |
