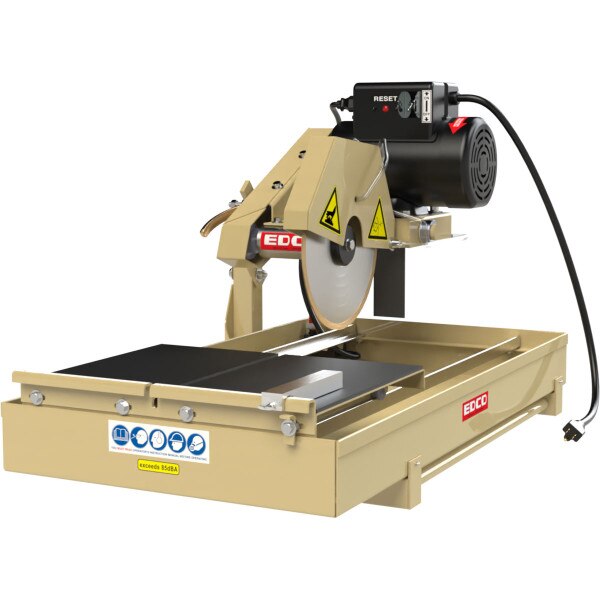

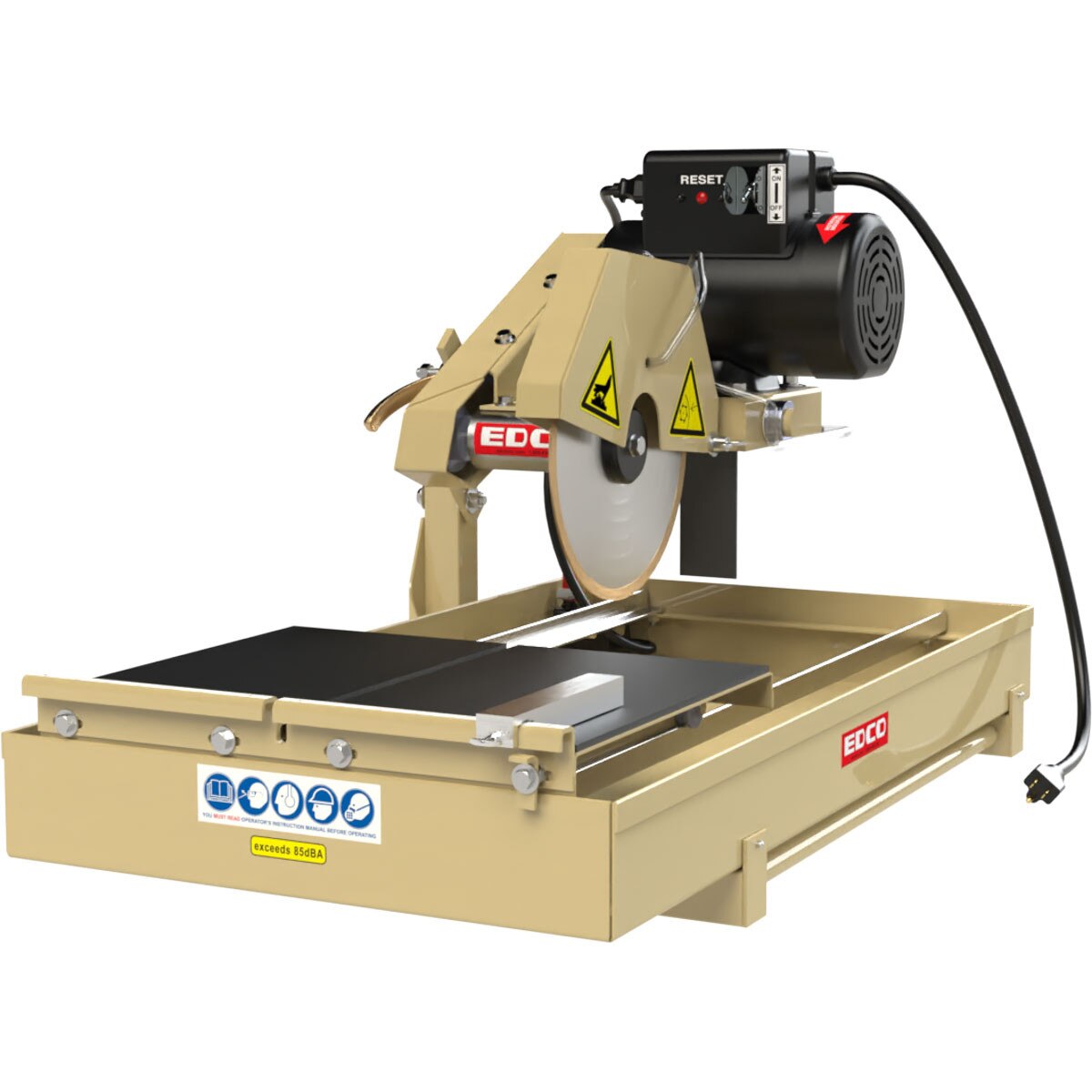

10" Tile Saw, 1.5 HP Leeson Motor, Electric (TMS10 / 24200-ED)
PRODUCT DETAILS
The EDCO TMS-10 Tile Saw is for both homeowner and professional tile cutting and installation. It has a maximum cutting depth of 3-3/4". Cuts 12" diagonally and/or 20" lengthwise.
- Electric powered
- 2-position tray makes it easy to cut
- Vertical and horizontal shielded bearings provide smoother rolling table for cleaner cuts
- Heavy-duty, screw-type depth control provides easy blade adjustment and prevents cutting into roller table
- Adjustable water flow, electric water pump and 10" continuous rim blade are included
- Positive-drive timing belt pulley system delivers maximum power to the blade with minimum vibration
- Rolling table is locked to guide rails so it cannot be misplaced or forgotten and is oversized to comfortably support larger tiles
- Optional folding upright stand for convenient working height available (Not Included)
Specifications
| Model | 24200-ED |
| Power | Electric |
| Horse Power | 1.5 HP |
| RPMs | 2,330 |
| Phase | Single Phase |
| Length | 35" |
| Width | 22" |
| Height | 21.25" |
| Weight | 111 lbs |
| Max Cut - Diagonally | 12" |
| Max Cut - Lengthwise | 20" |
| Belts | Timing Belt |
