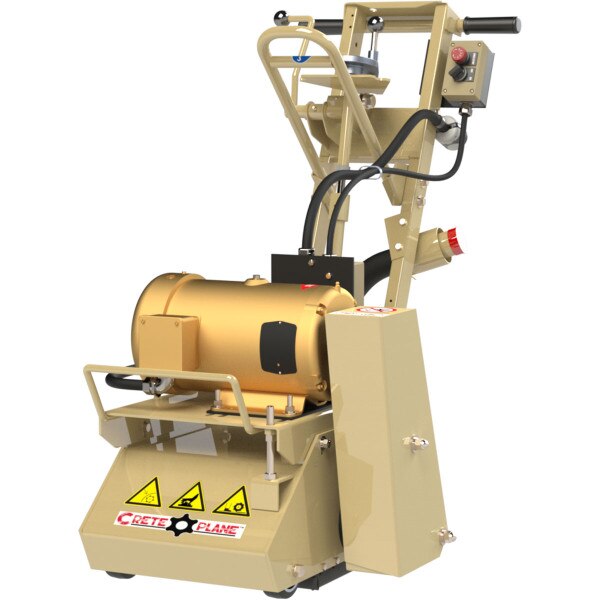

10" Walk Behind Crete Planer 7.5 HP/460V/3 Phase (CPM10E / 69200-460-ED)
PRODUCT DETAILS
The EDCO 10" Walk-Behind Crete-Planer. Crete-Planers level, remove, texture and groove concrete and asphalt surfaces. The 10" Planer is designed for aggressive removal applications like surface leveling and heavy coating removal.
- 10" working width will scarify approximately 500-700 sq. ft. per hour at Depth
Per Pass of 1/8" - 1/4" steel frame
- Heavy-duty, oversized bearings
- Weighs 299 lbs. with cutters
- Tethered emergency stop switch
- Gasoline or Electric models available
- Vacuum port standard for dust-free cutting
- 6-Shaft and 8-Shaft easy change, side-loading drums available
- Tungsten carbide or steel cutters available
Specifications
| Model | 69200-460 |
| Power | Electric |
| Horse Power | 7.5HP |
| RPMs | 2,344 |
| Phase | Three Phase |
| Voltage | 460 V |
| Amps | 17.4 A |
| Length | 41" |
| Width | 23" |
| Height | 41" |
| Weight | 287 lbs |
| Belts | Cgd "V" Belt |
