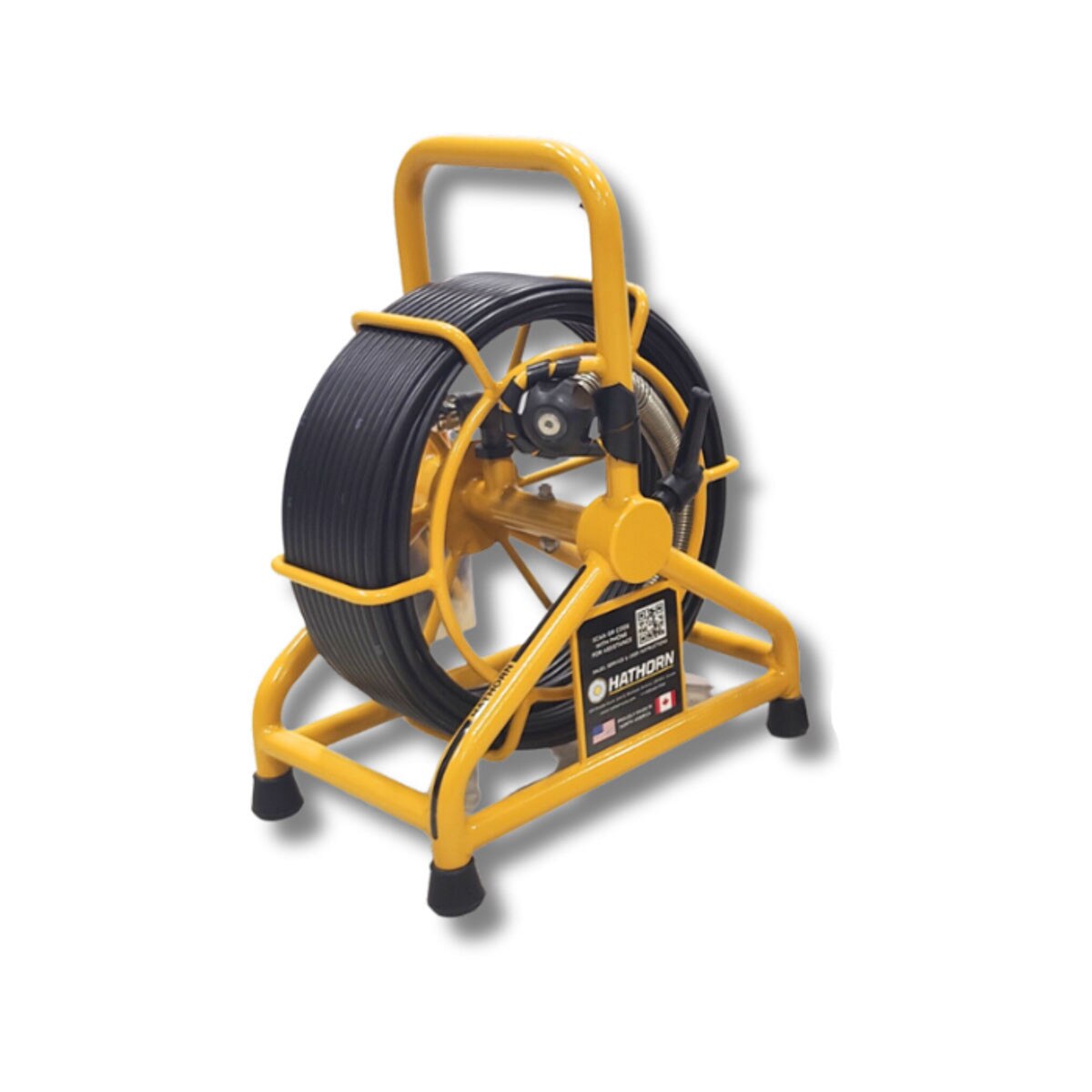

Camera Reel, Micron, 100 Ft., 7/8" SV Camera, 3/8" Cable (MC-1078)
PRODUCT DETAILS
Discover the unparalleled versatility and precision of Hathorn's Standard Camera Reels, boasting an elite range of eleven advanced camera heads, including both self-leveling and straight view options. With five size variations and customizable push rod lengths ranging from 100 to 500 ft, you'll be able to complete any job with ease.
- Inspect pipes from 1.5" to 3" with ease
- Push up to 100 ft
- Compatible with all Hathorn M18, H12 and H12+ controllers
- Camera Heads - 1" straight view camera head with auto-iris technology
- Lightweight, can go anywhere - weighs only 16 lbs. and is 16" tall
- Push Rod - with premium 1/4Ó rod with HDPE jacket
- Butt-welded steel frame construction
- Powered using Hathorn control module
- Dimmable Lighting - 8 super bright cool running LEDs for long camera life ~8,000 LUX at 6Ó
- 512 Hz High-power sonde
- Operating Temperature of -30C to 60C (-22F to 140F)
- Ingress Protection of Reel & Drains Camera Head - IPx5 to 60PSI
Specifications
| Model | MC-1078 |
| Size | Micron |
| Camera Head | 7/8" |
| Wi-Fi | No |
| Self Leveling | No (Straight View) |
| Rod Length | 100 ft. |
| Rod Size | 1/4" |
| Min. 90 Degree Elbow | 1.5" |
| Max. Pipe | 4" |
| Weight Without Battery | 15 lbs |
| Dimensions (L x W x H) | 16" x 12" x 10" |
