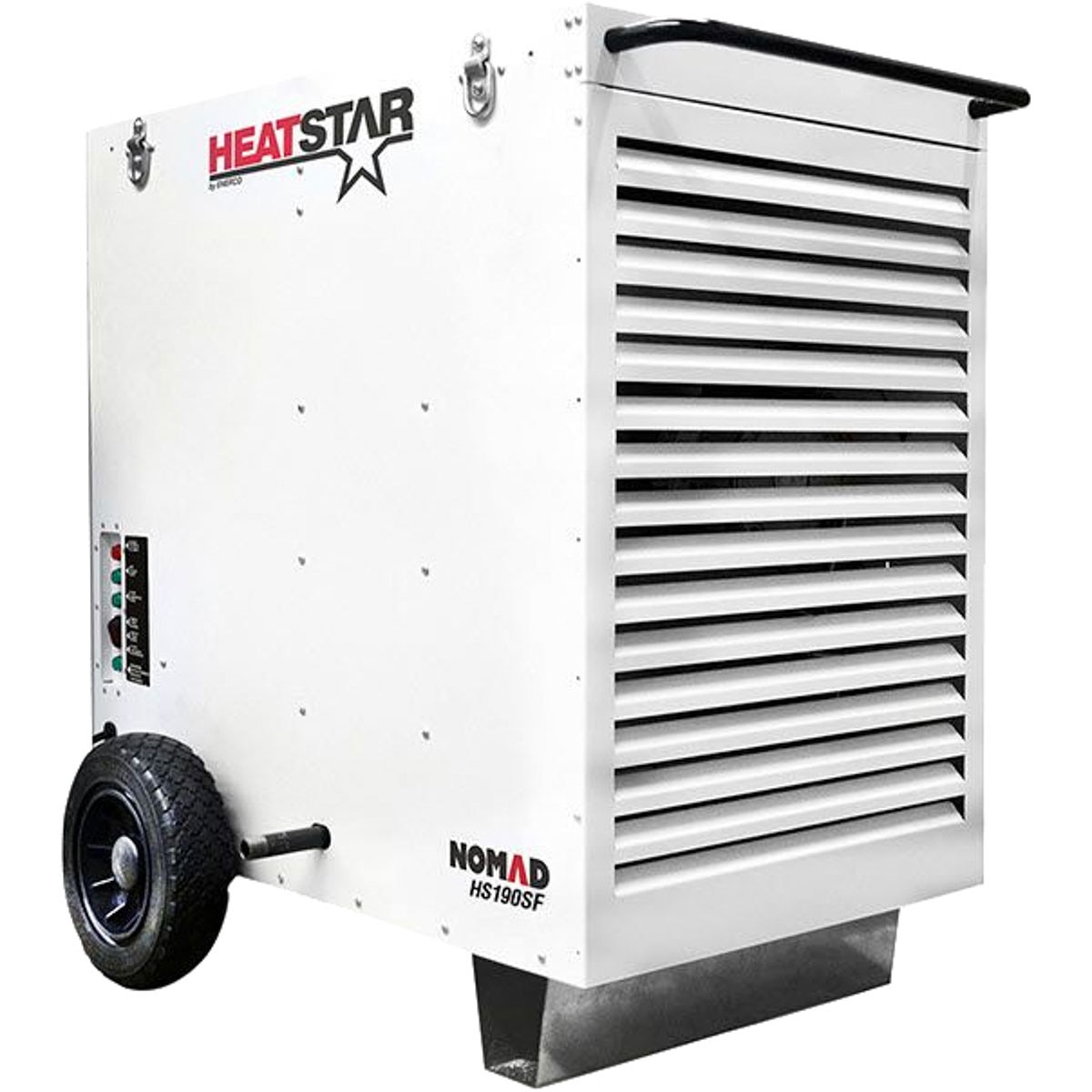

190,000 BTU NOMAD Construction and Tent Heater (Single Fuel Series: Propane) (HS190SF / F109210)
PRODUCT DETAILS
The HeatStar HS190SF 190,000 BTU NOMAD Single Fuel Construction and Tent Industrial Heater with thermostat and 20ft cord, 15ft hose and regulator is ideal for enclosed construction site spaces, temporary structures or tents. These are highly fuel efficient, portable, cost effective heaters able to be used with or without a duct or diffuser. Manage comfortable temperatures, shorter pre-heat times and fuel consumption using high or low settings.
- Multi-rate settings 190,000 BTU or 127,000 BTU
- Single fuel LP
- High CFM
- Easy high limit switch reset
- Flexible duct
- Diffuser system
- Steel storage box with lock hasp, optional
Specifications
| Model | HS190SF (F109210) |
| Weight | 159 lbs |
| Fuel Type | Propane |
| Minimum LP Tank Size | 2 x 100lb |
| Minimum NG Line Size | N/A |
| Electrical Rating | 115V / 5.5 amps |
| Air Volume (CFM) | 1600 |
| Gas Inlet Connection | 1/2in D |
| Gas Inlet Pressure Min | LP - 11in WC |
| Gas Inlet Pressure Max | LP - 14in WC |
| Clearance to Combustibles: Horizontal | Top 1ft ; Sides 1ft; Back 1ft; Outlet 6ft |
| Recirculating Ducting | Not Applicable |
| Duct Length Max | 10ft |
| Duct Diameter | 16in |
| Multiple Ducting Optional | Not Applicable |
| Wheel Type | Solid Rubber |
| Thermostat Optional | Included |
| Item Length | 35.75" |
| Item Width | 20.25" |
| Item Height | 34.75" |
| BTU Low | 125000 |
| BTU High | 190000 |
