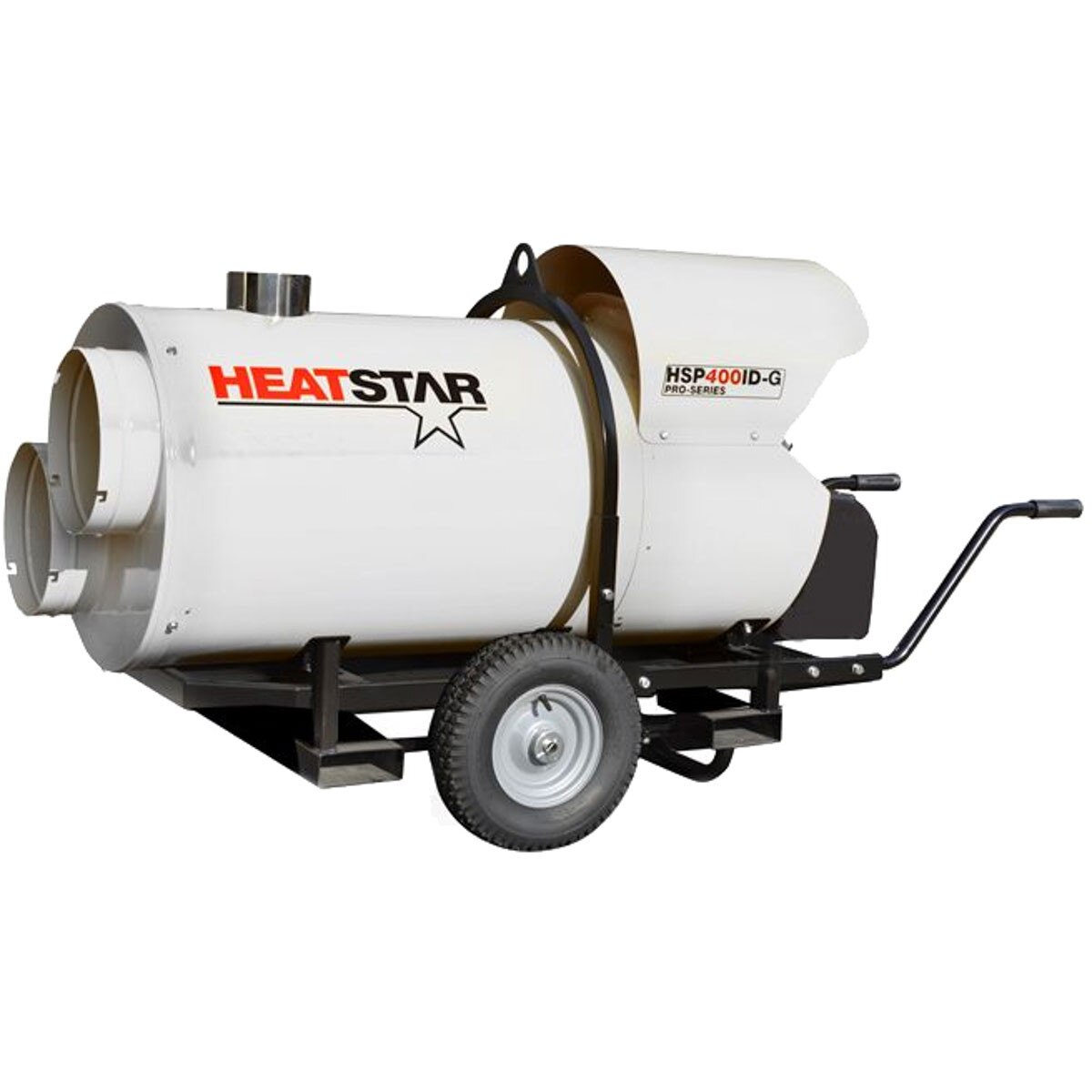

400,000 BTU Indirect Fired Construction Heater (Natural Gas/Propane) (HSP400ID-G / F105135)
PRODUCT DETAILS
The HeatStar HSP400ID-G PRO-SERIES 399,000 BTU/HR Indirect Fired (Natural Gas or Propane) Heater is an ideal heating solution for any large industrial or rental application. The Unit ships with factory installed dual 12" duct adapters. When paired with up to 100' of HeatStar high quality high temperature ducting, this indirect fired heater is an ideal heating system for delivering even heat to both event tents and construction sites with clean fresh heated air. You can place the unit outside the space and duct the warm air in or for a fuel savings you can place the heater in the space to be heated and vent the exhaust out. Either way, it's hard to beat the comfort and safety of indirect heat.
- Heavy duty frame
- Lift bracket
- Heat exchanger to keep exhaust gas and heated air separate
- Powerful fans ensure high static pressure
- Long life stainless steel combustion chamber
- Electronic flame control
- Water resistant flame control box
- Automatic safety and control devices
- Optional thermostat available for constant temperature control
- Durable powder coated finish
- Heavy duty duct adapter available
- UL Certified
Specifications
| Model | HSP400ID-G (F105135) |
| Weight | 473 lbs |
| Fuel Type | Natural Gas or Propane |
| Minimum LP Tank Size | See Manual for Guidelines |
| Minimum NG Line Size | See Manual for Guidelines |
| Electrical Rating | 120V/60 Hz, 13 Amps |
| Air Volume (CFM) | 4032 |
| Gas Inlet Connection | 1/2in |
| Gas Inlet Pressure Min | NG (7in w.c.) / LP (8in w.c.) |
| Gas Inlet Pressure Max | NG (10in w.c.) / LP (13in w.c.) |
| Clearance to Combustibles: Horizontal | 6 ft |
| Recirculating Ducting | F105127 Adapter Ring / F105128 24in x 25ft Duct and Clamp |
| Duct Length Max | 100 ft |
| Duct Diameter | Standard Dual (12in) or Single F105126 (16in) |
| Multiple Ducting Optional | F150040 12in x 25ft / F150050 16in x 25ft |
| Wheel Type | Pneumatic |
| Thermostat Optional | F105108 Analog (33') / F105106 Digital (33') |
| Item Length | 68" |
| Item Width | 27" |
| Item Height | 60" |
| Warranty | 1 Year Limited |
