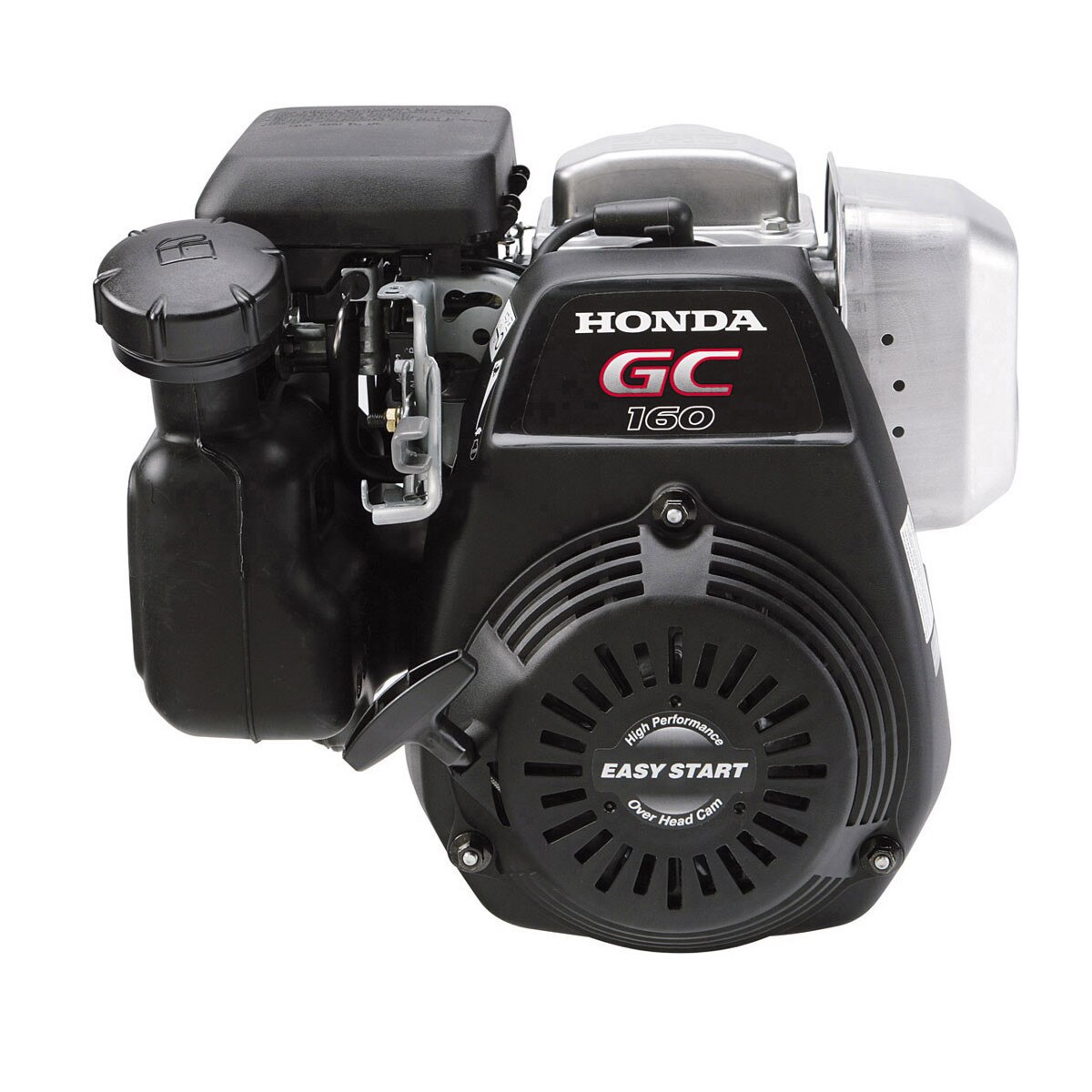

5 NET HP Honda Engine (GC160QHC)
PRODUCT DETAILS
Reliable lightweight power, specifically designed for home-use power equipment applications, the Honda GC160 provides an ideal source of power for a variety of consumer products. The GC Series has a revolutionary combination of the world's first internal timing belt, tough overhead cam and uniblock construction. This makes it light and compact, perfect for residential power equipment.
- Unique overhead cam design helps reduce fuel consumption
- The world's first general purpose engine internal timing belt
- Easy access oil drain and fill
- Proven lifetime timing belt design
- Automatic mechanical decompression
- Common Applications:
- Pressure washers
- Tillers / cultivators
- Agricultural equipment
- Water pumps
Specifications
| Model | GC160QHC |
| Engine Type | Air-cooled 4-stroke OHC |
| Bore x Stroke | 2.5" x 2.0" (64 mm x 50 mm) |
| Displacement | 9.8 cu in (160 cm3) |
| Net Power Output* | 4.6 HP (3.4 kW) @ 3600 rpm |
| Net Torque | 6.9 lb-ft (9.4 Nm) @ 2500 rpm |
| PTO Type | Straight |
| PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
| PTO Bolt Size | 5/16-24 UNF |
| PTO Diameter/Taper | 19.05mm (0.75") |
| Recoil Starter | Short Rope |
| Compression Ratio | 8.5:1 |
| Carburetor | Horizontal type butterfly valve |
| Ignition System | Transistorized magneto |
| Starting System | Recoil/electric |
| Muffler Type | Standard |
| Air Cleaner | Dry (paper filter) |
| Governor System | Centrifugal Mechanical |
| Fuel Tank Capacity | 1.9 US qts (1.8 liters) |
| Fuel | Unleaded 86 octane or higher |
| Oil Capacity | 0.61 US qt (0.58l) |
| Lubrication System | Splash |
| Dry Weight | 25.4 lbs (11.5 kg) |
