  • 3.5 NET HP Honda Engine, 118 cc, 3/4" Crankshaft, Keyed, w/ Oil Alert (6 to 1 reduction) (GX120HX)

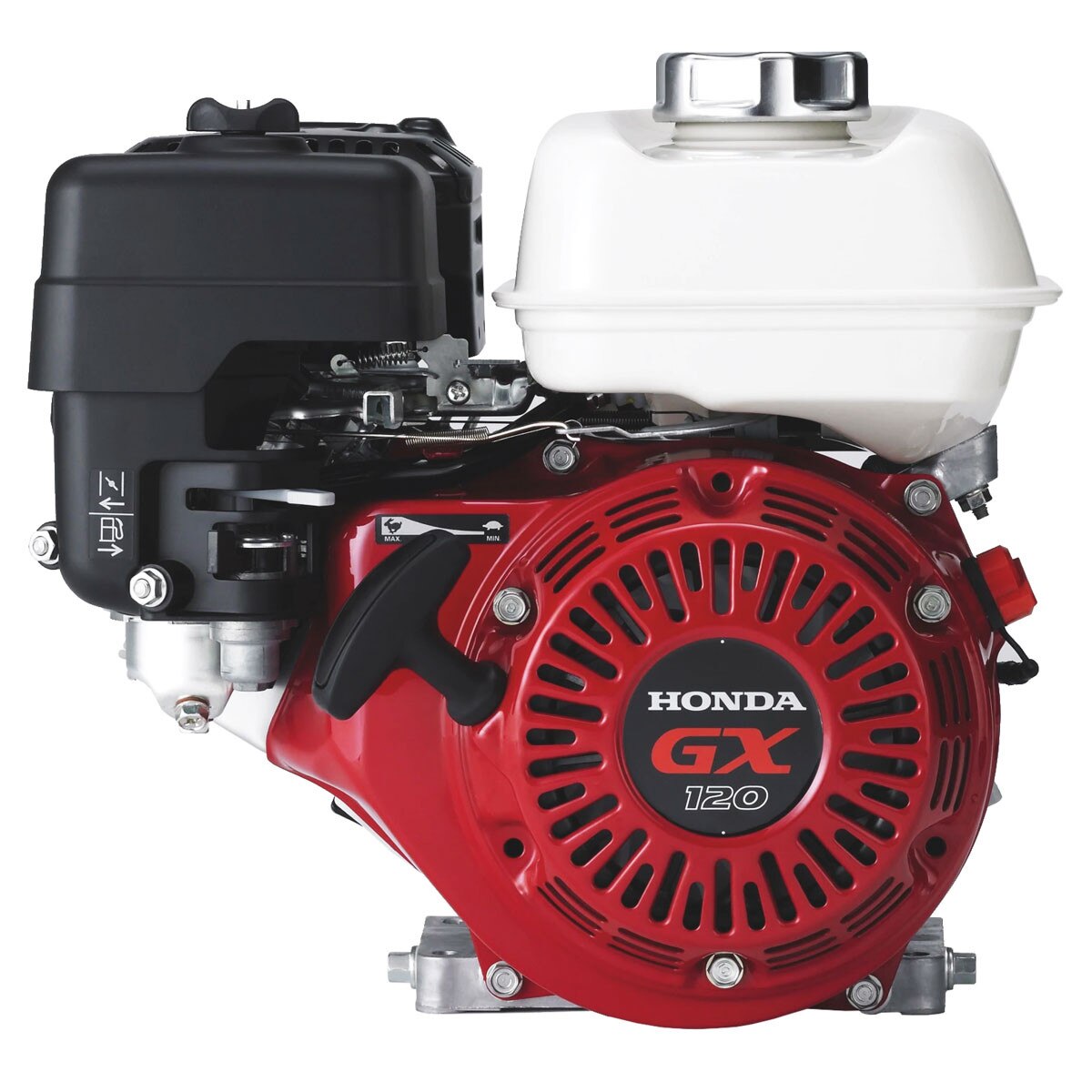

3.5 NET HP Honda Engine, 118 cc, 3/4" Crankshaft, Keyed, w/ Oil Alert (6 to 1 reduction) (GX120HX)

(0)No Reviews yet
SKU: GX120HX

This item is IN STOCK

Current Stock: 33

PRODUCT DETAILS

The GX Series has proven itself as one of the most rugged, easy-starting and reliable engines around. Trades people stake their livelihood on them day after day. With a wide range of selections there's a GX Series engine for almost any application. Ready for almost anything, the GX120 offers low noise levels and emissions - along with plenty of power and reliability to boot.


  • Horizontal shaft
  • Precision camshaft design for precise valve timing and optimal valve overlap
  • Ball-bearing supported crankshaft for improved stability
  • Dual oil drains and fill
  • Oil Alert
  • Large capacity, multi-chamber exhaust system
  • Common Applications:
    • Agricultural equipment
    • Commercial lawn and garden equipment
    • Construction/industrial equipment
    • Forestry equipment
    • Generators
    • Pressure washers
    • Tillers/cultivators
    • Water pumps

Specifications

ModelGX120HX

Engine Type

Air-cooled 4-stroke OHV

Bore x Stroke

60 mm x 42 mm

Displacement

118 cc

Net Power Output*

3.5 HP (2.6 kW) @ 3,600 rpm

Net Torque

5.4 lb-ft (7.3 Nm) @ 2,500 rpm
PTO TypeSplined

PTO Shaft Rotation

Counterclockwise (from PTO shaft side)
PTO Diameter/Taper21mm
PTO Reduction6 to 1

Compression Ratio

8.5:1

Fuel Tank Capacity

2.0 litres (2.1 US qts)

Lamp/Charge coil options

25W, 50W

Carburetor

Butterfly

Ignition System

Transistorized magneto
Control Box c/w Ign.SwitchEngine Stop Switch, STD

Starting System

Recoil

Lubrication System

Splash

Governor System

Mechanical

Air Cleaner

Dual element

Oil Capacity

0.56 litres (0.59 US qts)
Oil Alert (Shut Down)Yes
MufflerStandard

Fuel

Unleaded 86 octane or higher

Dry Weight

13.0 kg (29 lbs)
