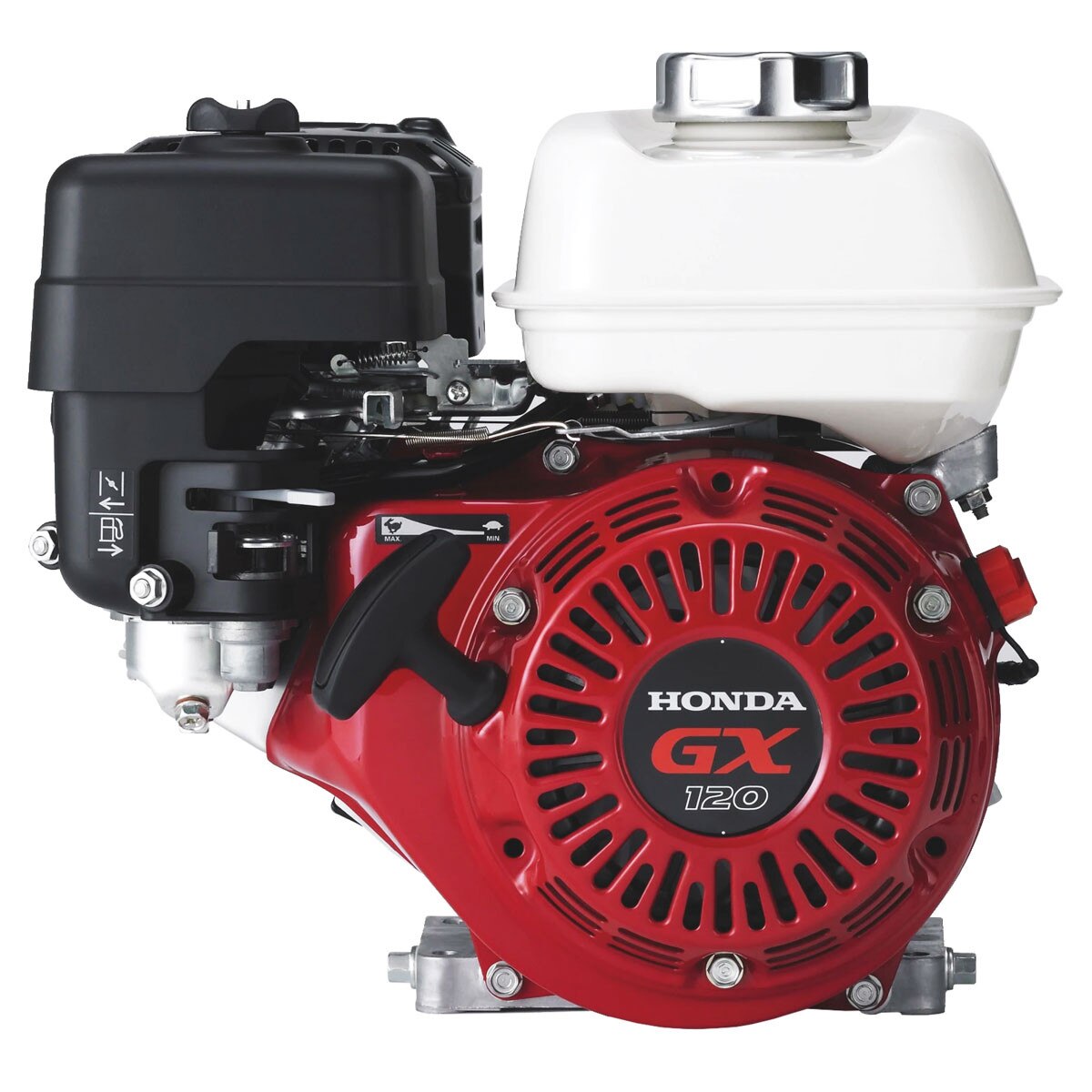

3.5 NET HP Honda Engine, 118 cc, 3/4" Crankshaft, Keyed & Tapped, w/ Oil Alert (GX120QX)
PRODUCT DETAILS
The GX Series has proven itself as one of the most rugged, easy-starting and reliable engines around. Trades people stake their livelihood on them day after day. With a wide range of selections there's a GX Series engine for almost any application. Ready for almost anything, the GX120 offers low noise levels and emissions - along with plenty of power and reliability to boot.
- Horizontal shaft
- Precision camshaft design for precise valve timing and optimal valve overlap
- Ball-bearing supported crankshaft for improved stability
- Dual oil drains and fill
- Oil Alert
- Large capacity, multi-chamber exhaust system
- Common Applications:
- Agricultural equipment
- Commercial lawn and garden equipment
- Construction/industrial equipment
- Forestry equipment
- Generators
- Pressure washers
- Tillers/cultivators
- Water pumps
Specifications
| Model | GX120QX |
Engine Type | Air-cooled 4-stroke OHV |
Bore x Stroke | 60 mm x 42 mm |
Displacement | 118 cc |
Net Power Output* | 3.5 HP (2.6 kW) @ 3,600 rpm |
Net Torque | 5.4 lb-ft (7.3 Nm) @ 2,500 rpm |
| PTO Type | Straight |
PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
| PTO Diameter/Taper | 3/4" |
| PTO Bolt Size | 5/16-24 UNF |
Compression Ratio | 8.5:1 |
Fuel Tank Capacity | 2.0 litres (2.1 US qts) |
Lamp/Charge coil options | 25W, 50W |
Carburetor | Butterfly |
Ignition System | Transistorized magneto |
| Control Box c/w Ign.Switch | Engine Stop Switch, STD |
Starting System | Recoil |
Lubrication System | Splash |
Governor System | Mechanical |
Air Cleaner | Dual element |
Oil Capacity | 0.56 litres (0.59 US qts) |
| Oil Alert (Shut Down) | Yes |
| Muffler | Standard |
Fuel | Unleaded 86 octane or higher |
Dry Weight | 13.0 kg (29 lbs) |
