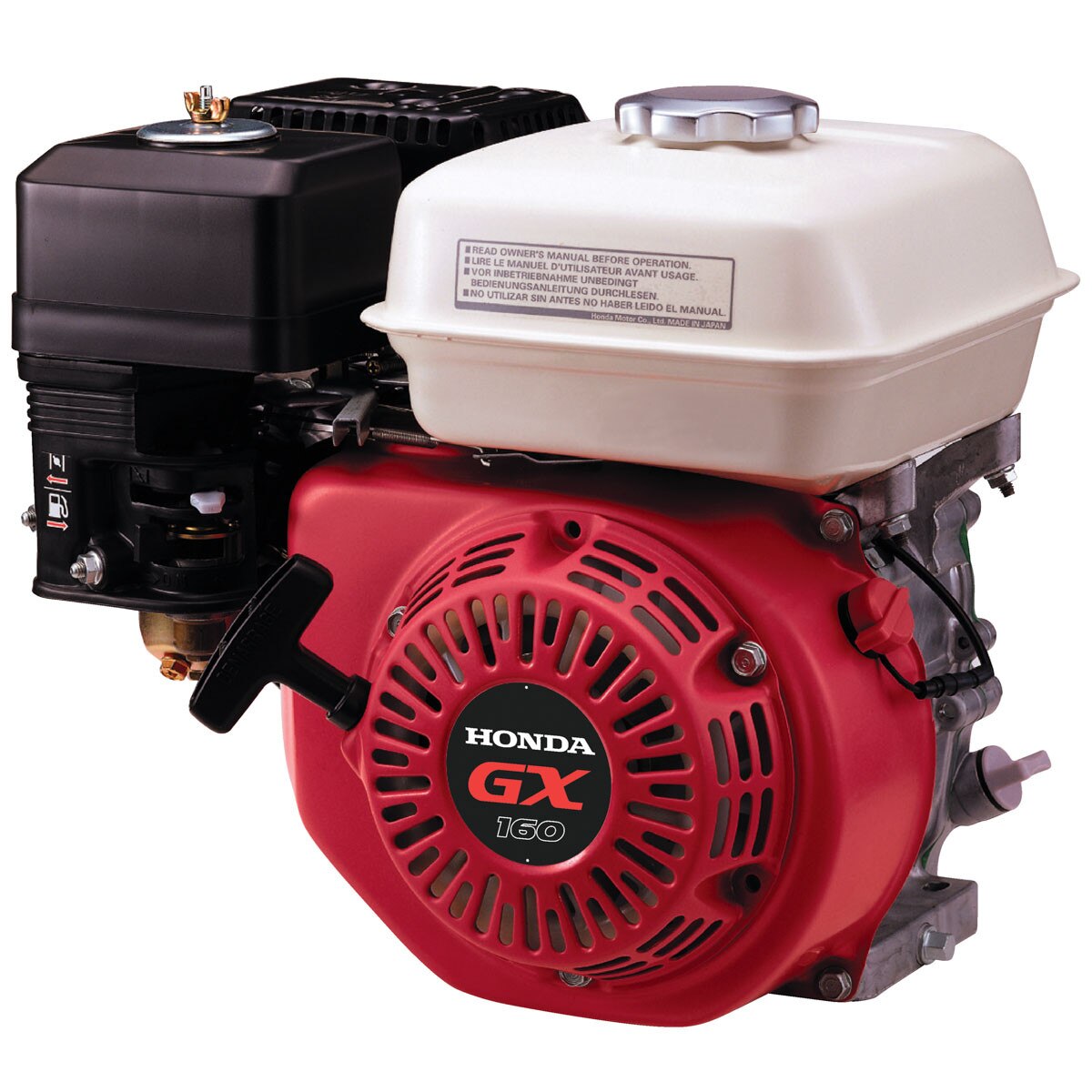

  • 4.8 NET HP Honda Engine, 163 cc, 3/4" Crankshaft, Keyed & Tapped w/ Oil Alert (6 to 1 reduction) (GX160HX)

4.8 NET HP Honda Engine, 163 cc, 3/4" Crankshaft, Keyed & Tapped w/ Oil Alert (6 to 1 reduction) (GX160HX)

(0)No Reviews yet
SKU: GX160HX

This item is OUT OF STOCK

PRODUCT DETAILS

The GX Series has proven itself as one of the most rugged, easy-starting and reliable engines around. Trades people stake their livelihood on them day after day. With a wide range of selections there's a GX Series engine for almost any application. The GX160 is the perfect engine for a wide range of applications across forestry, agriculture, and industrial needs. It's also a truly reliable performer that delivers power and fuel efficiency.


  • Horizontal crankshaft
  • Precision camshaft design for precise valve timing and optimal valve overlap
  • Ball-bearing supported crankshaft for improved stability
  • Dual oil drains and fill
  • Multiple charging coil options
  • Large-capacity, multi-chamber exhaust system
  • Common Applications:
    • Agricultural equipment
    • Commercial lawn and garden equipment
    • Construction/industrial equipment
    • Forestry equipment
    • Generators
    • Pressure washers
    • Tillers/cultivators
    • Water pumps

Specifications

ModelGX160HX

Engine Type

Air-cooled 4-stroke OHV

Bore x Stroke

68 mm x 45 mm

Displacement

163 cc

Net Power Output*

4.8 HP (3.6 kW) @ 3,600 rpm

Net Torque

7.6 lb-ft (10.3 Nm) @ 2,500 rpm
PTO TypeSplined

PTO Shaft Rotation

Counterclockwise (from PTO shaft side)
PTO Diameter/Taper21mm
PTO Reduction6 to 1
PTO Bolt SizeN/A

Compression Ratio

9.0:1

Fuel Tank Capacity

3.1 litres (3.3 US qts)

Lamp/Charge coil options

25W, 50W / 1A, 3A, 7A

Carburetor

Butterfly
Recoil StarterYes
Lever ThrottleYes

Ignition System

Transistorized magneto

Starting System

Recoil starter

Lubrication System

Splash

Governor System

Centrifugal mechanical

Air Cleaner

Dual element
MufflerStandard

Oil Capacity

0.58 litres (0.61 US qts)

Fuel

Unleaded 86 octane or higher

Dry Weight

15.1 kg (33 lbs)
