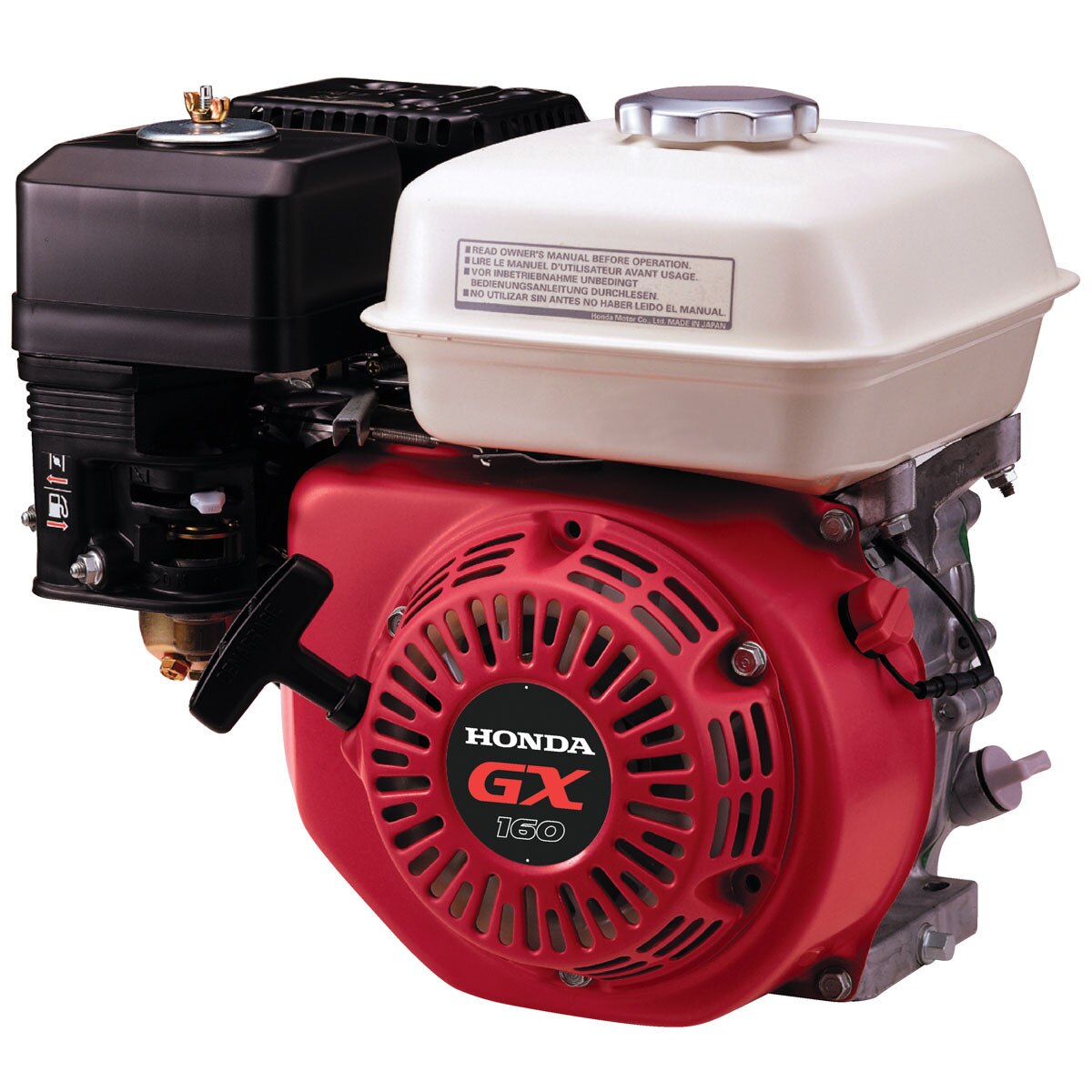

4.8 NET HP Honda Engine, 163 cc, 3/4" Crankshaft, keyed & tapped (GX160QH)

(0)No Reviews yet

This item is IN STOCK

Current Stock: 75


The GX Series has proven itself as one of the most rugged, easy-starting and reliable engines around. Trades people stake their livelihood on them day after day. With a wide range of selections there's a GX Series engine for almost any application. The GX160 is the perfect engine for a wide range of applications across forestry, agriculture, and industrial needs. It's also a truly reliable performer that delivers power and fuel efficiency.

  • Horizontal crankshaft
  • Precision camshaft design for precise valve timing and optimal valve overlap
  • Ball-bearing supported crankshaft for improved stability
  • Dual oil drains and fill
  • Multiple charging coil options
  • Large-capacity, multi-chamber exhaust system
  • Common Applications:
    • Agricultural equipment
    • Commercial lawn and garden equipment
    • Construction/industrial equipment
    • Forestry equipment
    • Generators
    • Pressure washers
    • Tillers/cultivators
    • Water pumps



Engine Type

Air-cooled 4-stroke OHV

Bore x Stroke

68 mm x 45 mm


163 cc

Net Power Output*

4.8 HP (3.6 kW) @ 3,600 rpm

Net Torque

7.6 lb-ft (10.3 Nm) @ 2,500 rpm
PTO TypeStraight

PTO Shaft Rotation

Counterclockwise (from PTO shaft side)
PTO Diameter/Taper3/4"
PTO Bolt Size5/16-24 UNF

Compression Ratio


Fuel Tank Capacity

3.1 litres (3.3 US qts)

Lamp/Charge coil options

25W, 50W / 1A, 3A, 7A


Recoil StarterYes
Lever ThrottleYes
Oil Alert (Shutdown)No

Ignition System

Transistorized magneto

Starting System

Recoil starter

Lubrication System


Governor System

Centrifugal mechanical

Air Cleaner

Dual element
Exhaust DeflectorYes

Oil Capacity

0.58 litres (0.61 US qts)


Unleaded 86 octane or higher

Dry Weight

15.1 kg (33 lbs)
