  • 4.8 NET HP Honda Engine, 163 cc, 20 mm Crankshaft, straight PTO, w/ Oil Alert (2:1 reduction) Electric Start (GX160RXE)

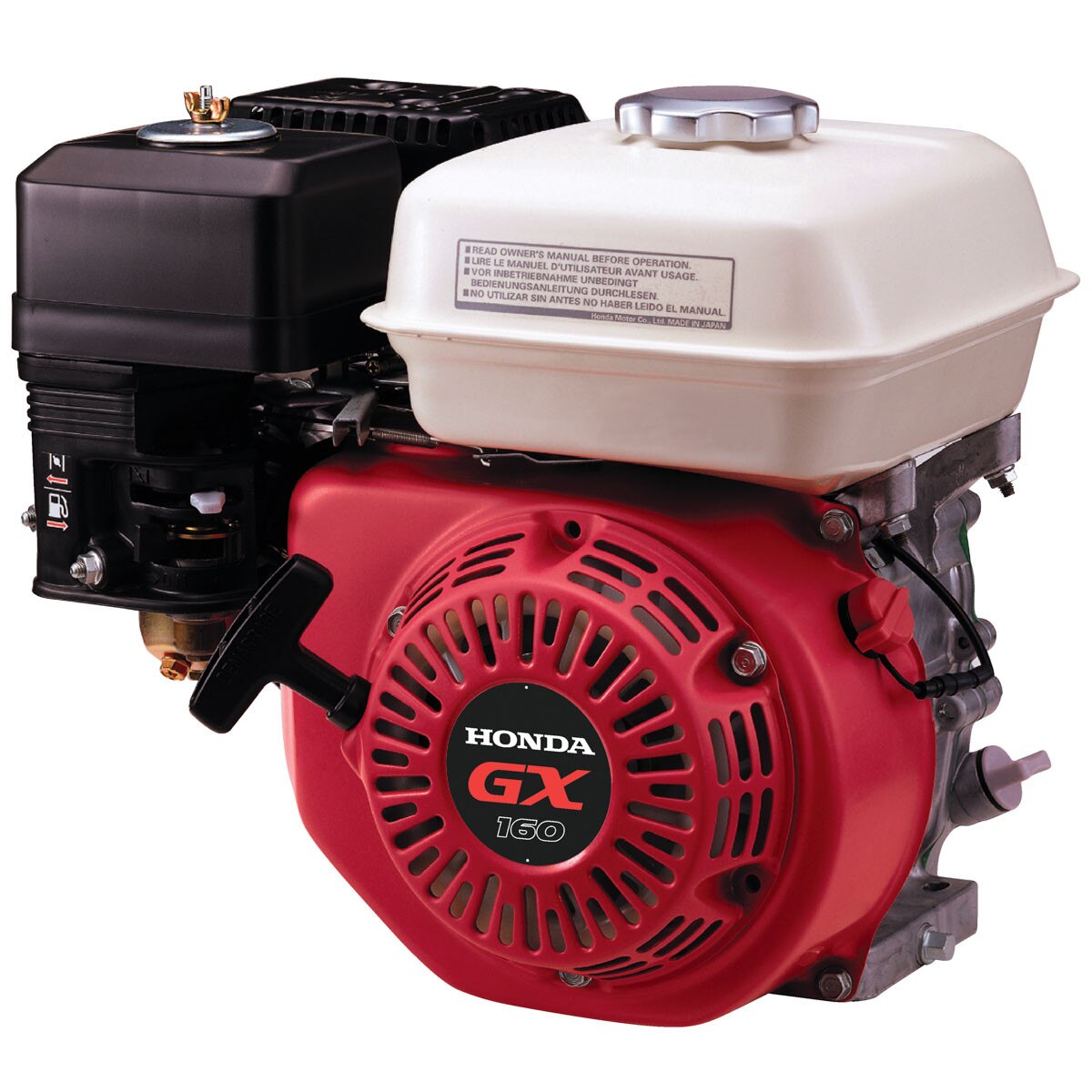

4.8 NET HP Honda Engine, 163 cc, 20 mm Crankshaft, straight PTO, w/ Oil Alert (2:1 reduction) Electric Start (GX160RXE)

(0)No Reviews yet
SKU: GX160RXE

This item is OUT OF STOCK

PRODUCT DETAILS

The GX Series has proven itself as one of the most rugged, easy-starting and reliable engines around. Trades people stake their livelihood on them day after day. With a wide range of selections there's a GX Series engine for almost any application. The GX160 is the perfect engine for a wide range of applications across forestry, agriculture, and industrial needs. It's also a truly reliable performer that delivers power and fuel efficiency.


  • Horizontal crankshaft
  • Precision camshaft design for precise valve timing and optimal valve overlap
  • Ball-bearing supported crankshaft for improved stability
  • Dual oil drains and fill
  • Multiple charging coil options
  • Large-capacity, multi-chamber exhaust system
  • Common Applications:
    • Agricultural equipment
    • Commercial lawn and garden equipment
    • Construction/industrial equipment
    • Forestry equipment
    • Generators
    • Pressure washers
    • Tillers/cultivators
    • Water pumps

Specifications

ModelGX160RXE
Engine TypeAir-cooled 4-stroke OHV
Bore x Stroke68 mm x 45 mm
Displacement163 cc
Net Power Output*4.8 HP (3.6 kW) @ 3,600 rpm
Net Torque7.6 lb-ft (10.3 Nm) @ 2,500 rpm
PTO TypeStraight
PTO Shaft RotationCounterclockwise (from PTO shaft side)
PTO Diameter/Taper20 mm
PTO Reduction2:1
PTO Bolt SizeM8 x 1.25 mm
Centrifugal ClutchYes
KeywayYes
Compression Ratio9.0:1
Fuel Tank Capacity3.1 litres (3.3 US qts)
Lamp/Charge coil options25W, 50W / 1A, 3A, 7A
CarburetorButterfly
Electric StarterYes
Recoil StarterYes
Lever ThrottleYes
Oil Alert (Shutdown)Yes
Ignition SystemTransistorized magneto
Starting SystemRecoil starter
Lubrication SystemSplash
Governor SystemCentrifugal mechanical
Air CleanerDual element
MufflerStandard
Oil Capacity0.58 litres (0.61 US qts)
FuelUnleaded 86 octane or higher
Charge Coil1A
Regulator / RectifierStandard
Dry Weight15.1 kg (33 lbs)
