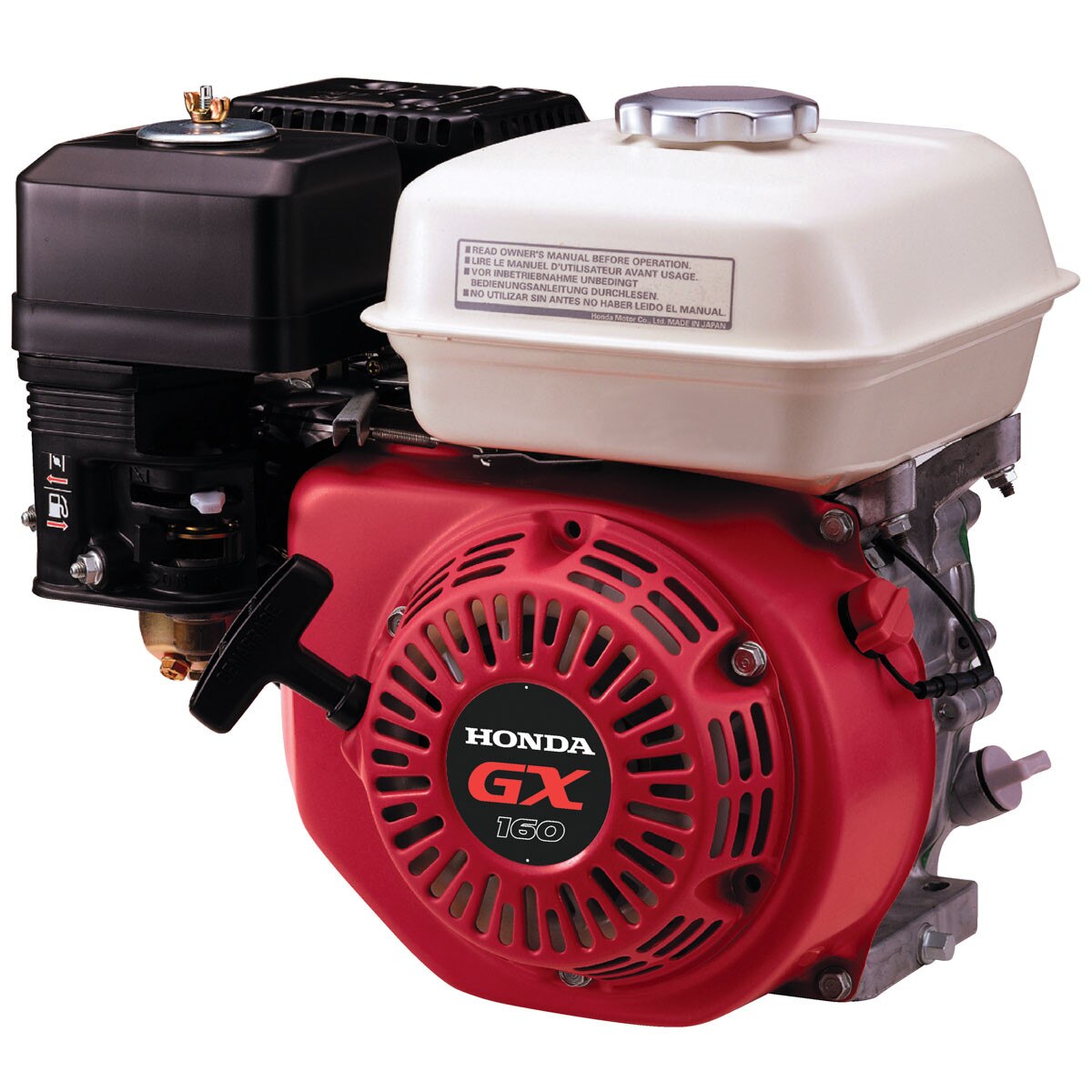

  • 4.8 NET HP Honda Engine, 163 cc, 20 mm Crankshaft, straight (tamper use, metric shaft) (GX160SD)

4.8 NET HP Honda Engine, 163 cc, 20 mm Crankshaft, straight (tamper use, metric shaft) (GX160SD)

(0)No Reviews yet
SKU: GX160SD

This item is IN STOCK

Current Stock: 7

PRODUCT DETAILS

The GX Series has proven itself as one of the most rugged, easy-starting and reliable engines around. Trades people stake their livelihood on them day after day. With a wide range of selections there's a GX Series engine for almost any application. The GX160 is the perfect engine for a wide range of applications across forestry, agriculture, and industrial needs. It's also a truly reliable performer that delivers power and fuel efficiency.


  • Horizontal crankshaft
  • Precision camshaft design for precise valve timing and optimal valve overlap
  • Ball-bearing supported crankshaft for improved stability
  • Dual oil drains and fill
  • Multiple charging coil options
  • Large-capacity, multi-chamber exhaust system
  • Common Applications:
    • Agricultural equipment
    • Commercial lawn and garden equipment
    • Construction/industrial equipment
    • Forestry equipment
    • Generators
    • Pressure washers
    • Tillers/cultivators
    • Water pumps

Specifications

ModelGX160SD
Engine TypeAir-cooled 4-stroke OHV
Bore x Stroke68 mm x 45 mm
Displacement163 cc
Net Power Output*4.8 HP (3.6 kW) @ 3,600 rpm
Net Torque7.6 lb-ft (10.3 Nm) @ 2,500 rpm
PTO TypeStraight
PTO Shaft RotationCounterclockwise (from PTO shaft side)
PTO Diameter/Taper20 mm
PTO Bolt SizeM8 x 1.25 mm
Centrifugal ClutchNo
KeywayYes
Compression Ratio9.0:1
Fuel Tank Capacity3.1 litres (3.3 US qts)
Lamp/Charge coil options25W, 50W / 1A, 3A, 7A
CarburetorButterfly
Electric StarterNo
Recoil StarterYes
Lever ThrottleYes
Oil Alert (Shutdown)No
Ignition SystemTransistorized magneto
Starting SystemRecoil starter
Lubrication SystemSplash
Governor SystemCentrifugal mechanical
Air CleanerDual element
Air Filter TypeSemi-Dry
MufflerStandard
Oil Capacity0.58 litres (0.61 US qts)
FuelUnleaded 86 octane or higher
Dry Weight15.1 kg (33 lbs)
