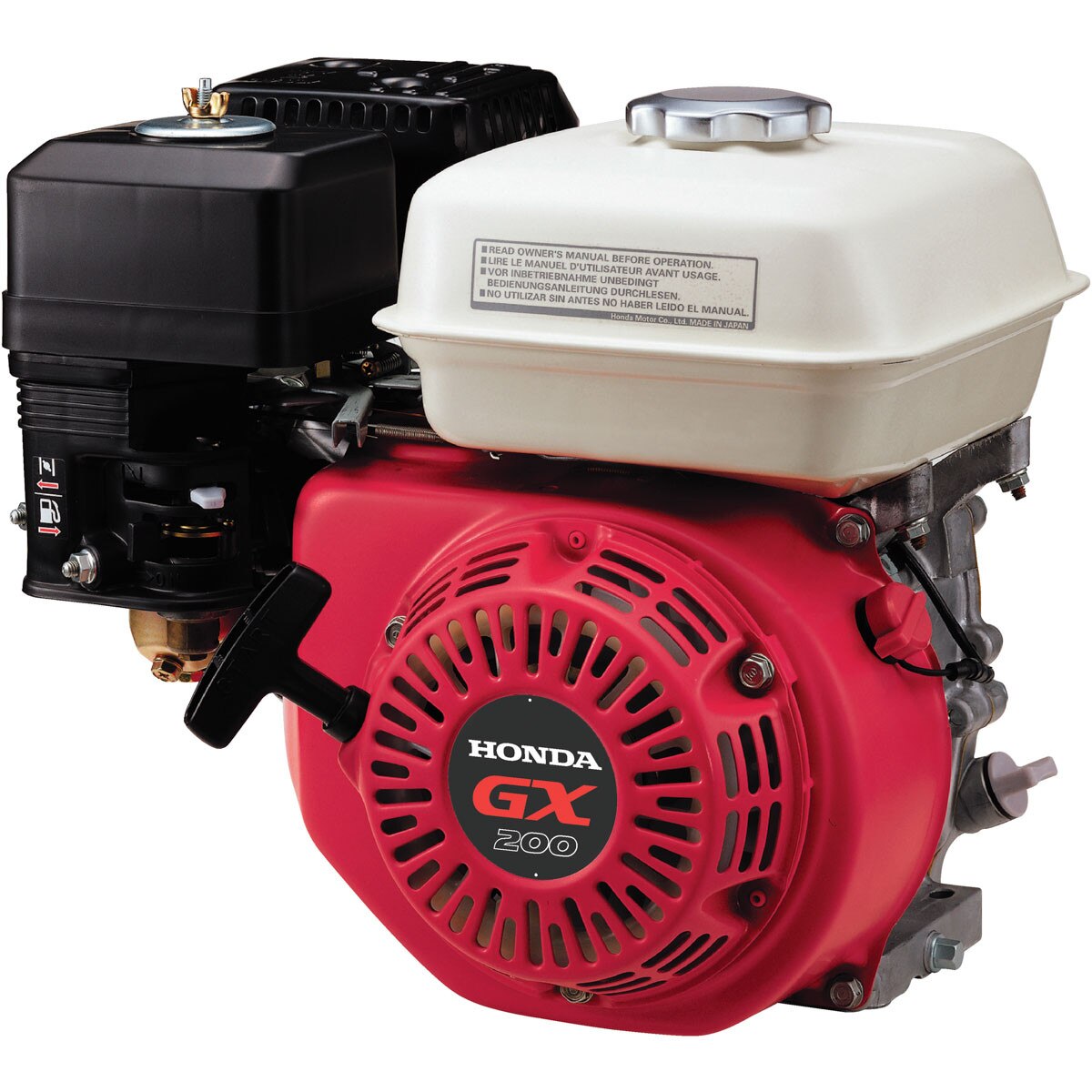

5.5 NET HP Honda Engine, 196 cc, 3/4" Crankshaft, Keyed, w/ Oil Alert (6 to 1 reduction) (GX200HX)

(0)No Reviews yet
SKU: GX200HX

This item is IN STOCK

Current Stock: 20

PRODUCT DETAILS

The GX Series has proven itself as one of the most rugged, easy-starting and reliable engines around. Trades people stake their livelihood on them day after day. With a wide range of selections there's a GX Series engine for almost any application. Newly designed for better noise levels and emissions, the GX200 is a serious performer that doesn't sacrifice power when it counts.


  • Horizontal crankshaft
  • Precision camshaft design for precise valve timing and optimal valve overlap
  • Ball-bearing supported crankshaft for improved stability
  • Dual oil drains and fill
  • Multiple charging coil options
  • Large-capacity, multi-chamber exhaust system
  • Common Applications:
    • Agricultural equipment
    • Commercial lawn and garden equipment
    • Construction/industrial equipment
    • Forestry equipment
    • Generators
    • Pressure washers
    • Tillers/cultivators
    • Water pumps

Specifications

ModelGX200HX

Engine Type

Air-cooled 4-stroke OHV

Bore x Stroke

68 mm x 54 mm

Displacement

196 cc

Net Power Output*

5.5 HP (4.1 kW) @ 3,600 rpm

Net Torque

9.1 lb-ft (12.4 Nm) @ 2,500 rpm
PTO TypeSplined

PTO Shaft Rotation

Counterclockwise (from PTO shaft side)
PTO Diameter/Taper21mm
PTO Reduction6:1
PTO Bolt SizeN/A
Centrifugal ClutchNo
KeywayNo

Compression Ratio

8.5:1

Fuel Tank Capacity

3.1 litres (3.3 US qts)

Lamp/Charge coil options

25W, 50W / 1A, 3A, 7A

Carburetor

Butterfly
Electric StarterNo
Recoil StarterYes
Control Box c/w Ign.SwitchEngine Stop Switch, STD
Lever ThrottleYes
Oil Alert (Shutdown)Yes

Ignition System

Transistorized magneto

Starting System

Recoil starter

Lubrication System

Splash

Governor System

Mechanical

Air Cleaner

Dual element
Air Filter TypeDual (Silent)
MufflerStandard

Oil Capacity

0.6 litres (0.63 US qts)

Fuel

Unleaded 86 octane or higher

Dry Weight

16.1 kg (35 lbs)
