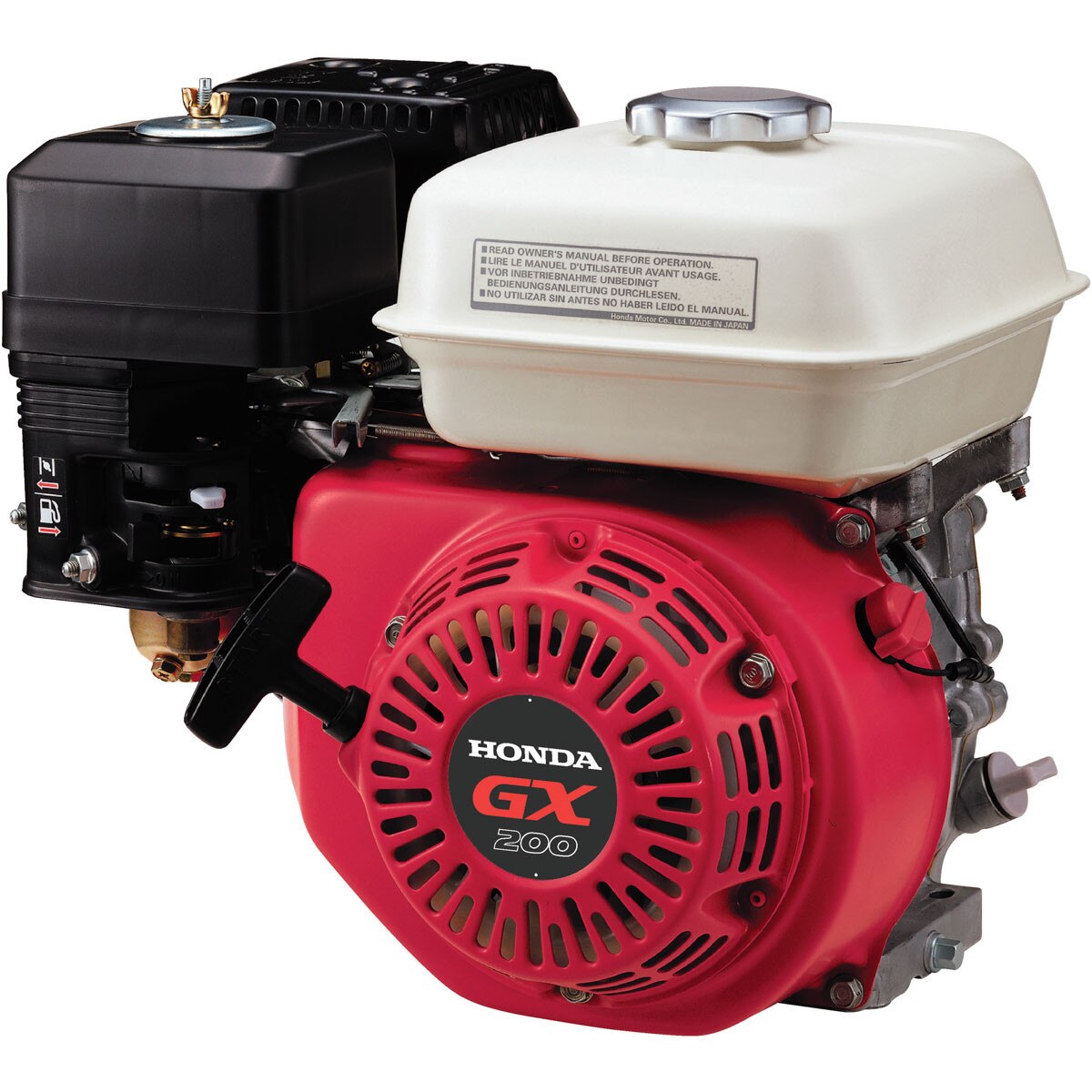

5.5 NET HP Honda Engine, 196 cc, 3/4" Crankshaft, Keyed & Tapped, w/ Oil Alert (GX200QX)

(0)No Reviews yet
SKU: GX200QX

This item is IN STOCK

Current Stock: 59

PRODUCT DETAILS

The GX Series has proven itself as one of the most rugged, easy-starting and reliable engines around. Trades people stake their livelihood on them day after day. With a wide range of selections there's a GX Series engine for almost any application. Newly designed for better noise levels and emissions, the GX200 is a serious performer that doesn't sacrifice power when it counts.


  • Horizontal crankshaft
  • Precision camshaft design for precise valve timing and optimal valve overlap
  • Ball-bearing supported crankshaft for improved stability
  • Dual oil drains and fill
  • Multiple charging coil options
  • Large-capacity, multi-chamber exhaust system
  • Common Applications:
    • Agricultural equipment
    • Commercial lawn and garden equipment
    • Construction/industrial equipment
    • Forestry equipment
    • Generators
    • Pressure washers
    • Tillers/cultivators
    • Water pumps

Specifications

ModelGX200QX
Engine TypeAir-cooled 4-stroke OHV
Bore x Stroke68 mm x 54 mm
Displacement196 cc
Net Power Output*5.5 HP (4.1 kW) @ 3,600 rpm
Net Torque9.1 lb-ft (12.4 Nm) @ 2,500 rpm
PTO TypeStraight
PTO Shaft RotationCounterclockwise (from PTO shaft side)
PTO Diameter/Taper3/4"
PTO Bolt Size5/16-24 UNF
Centrifugal ClutchNo
KeywayYes
Compression Ratio8.5:1
Fuel Tank Capacity3.1 litres (3.3 US qts)
Lamp/Charge coil options25W, 50W / 1A, 3A, 7A
CarburetorButterfly
Electric StarterNo
Recoil StarterYes
Control Box c/w Ign.SwitchEngine Stop Switch, STD
Remote ThrottleYes
Lever ThrottleNo
Oil Alert (Shutdown)Yes
Ignition SystemTransistorized magneto
Starting SystemRecoil starter
Lubrication SystemSplash
Governor SystemMechanical
Air CleanerDual element
Air Filter TypeDual (Silent)
MufflerStandard
Oil Capacity0.6 litres (0.63 US qts)
FuelUnleaded 86 octane or higher
Dry Weight16.1 kg (35 lbs)
