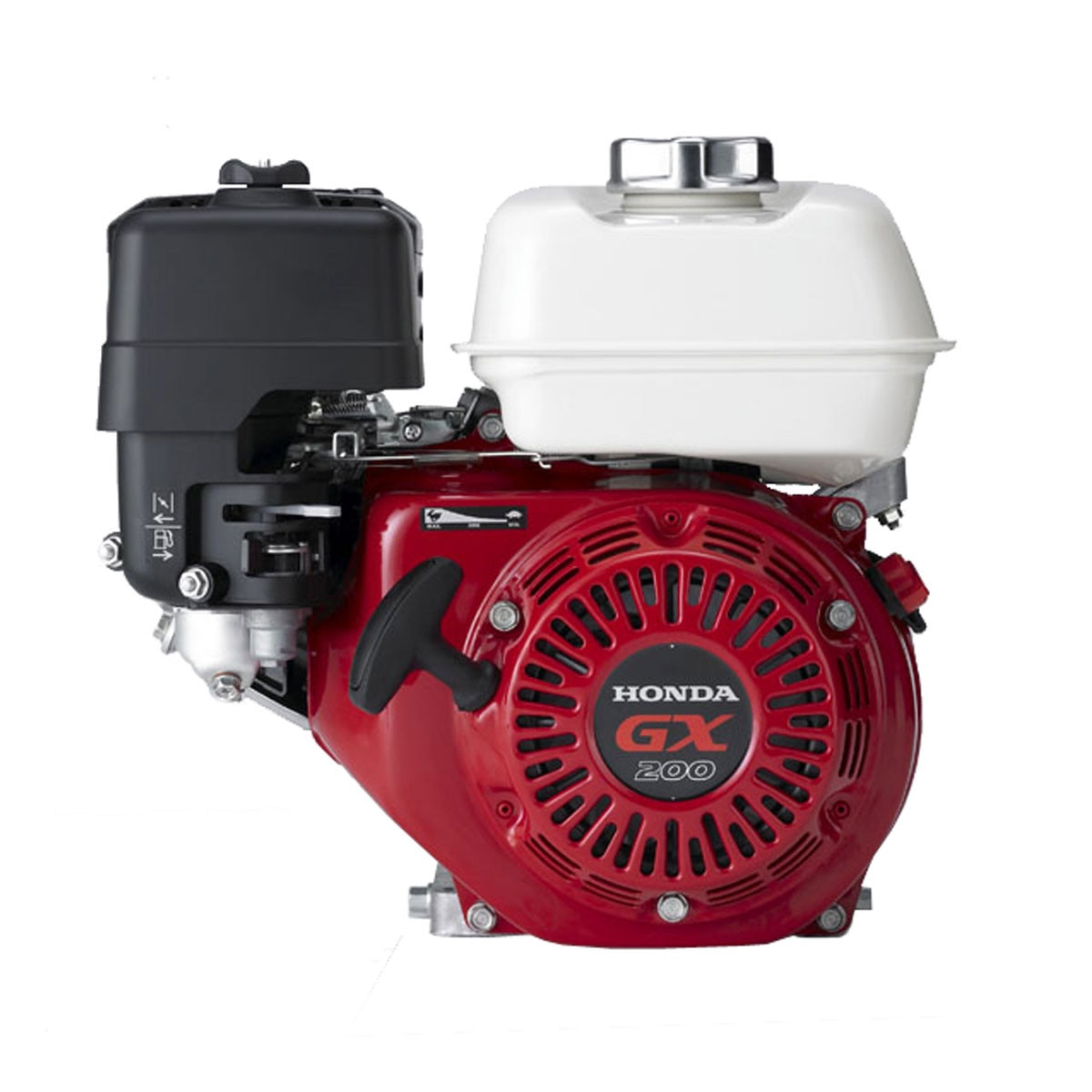

5.5 NET HP Honda Engine, 196cc 18Amp Charge Coil (GX200QXGB)
PRODUCT DETAILS
The GX Series has proven itself as one of the most rugged, easy-starting and reliable engines around. Trades people stake their livelihood on them day after day. With a wide range of selections there's a GX Series engine for almost any application. Newly designed for better noise levels and emissions, the GX200 is a serious performer that doesn't sacrifice power when it counts.
- Horizontal crankshaft
- Precision camshaft design for precise valve timing and optimal valve overlap
- Ball-bearing supported crankshaft for improved stability
- Dual oil drains and fill
- Multiple charging coil options
- Large-capacity, multi-chamber exhaust system
- Common Applications:
- Agricultural equipment
- Commercial lawn and garden equipment
- Construction/industrial equipment
- Forestry equipment
- Generators
- Pressure washers
- Tillers/cultivators
- Water pumps
Specifications
| Model | GX200QXGB |
| Engine Type | Air-cooled 4-stroke OHV |
| Bore x Stroke | 68 mm x 54 mm |
| Displacement | 196 cc |
| Net Power Output* | 5.5 HP (4.1 kW) @ 3,600 rpm |
| Net Torque | 9.1 lb-ft (12.4 Nm) @ 2,500 rpm |
| PTO Type | Straight |
| PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
| PTO Diameter/Taper | 19.05mm (0.75") |
| PTO Bolt Size | 5/16-24 UNF |
| Centrifugal Clutch | No |
| Keyway | Yes |
| Compression Ratio | 8.5:1 |
| Fuel Tank Capacity | 3.1 litres (3.3 US qts) |
| Lamp/Charge coil options | 25W, 50W / 1A, 3A, 7A |
| Carburetor | Butterfly |
| Electric Starter | No |
| Recoil Starter | Yes |
| Control Box c/w Ign.Switch | Control Box |
| Remote Throttle | No |
| Lever Throttle | Yes |
| Lever Choke | Yes |
| Oil Alert (Shutdown) | No |
| Ignition System | Transistorized magneto |
| Starting System | Recoil starter |
| Lubrication System | Splash |
| Governor System | Mechanical |
| Air Cleaner | Dual element |
| Air Filter Type | Silent |
| Muffler | Standard |
| Charge Coil | 18A |
| Regulator / Rectifier | Std (20A) |
| Oil Capacity | 0.6 litres (0.63 US qts) |
| Fuel | Unleaded 86 octane or higher |
| Dry Weight | 16.1 kg (35 lbs) |
