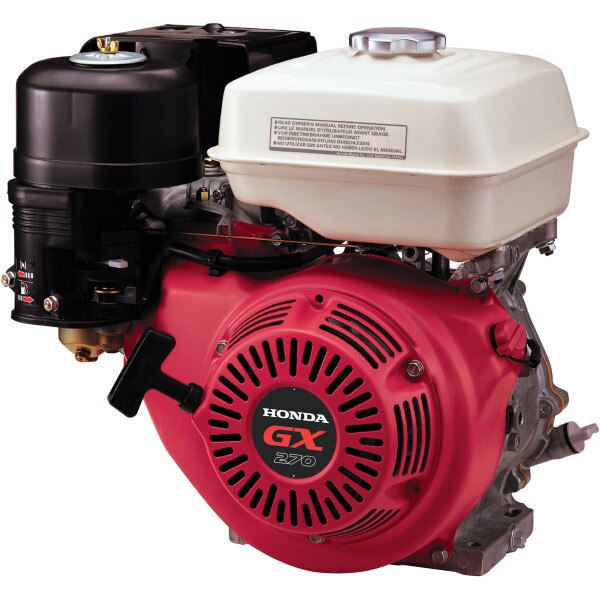

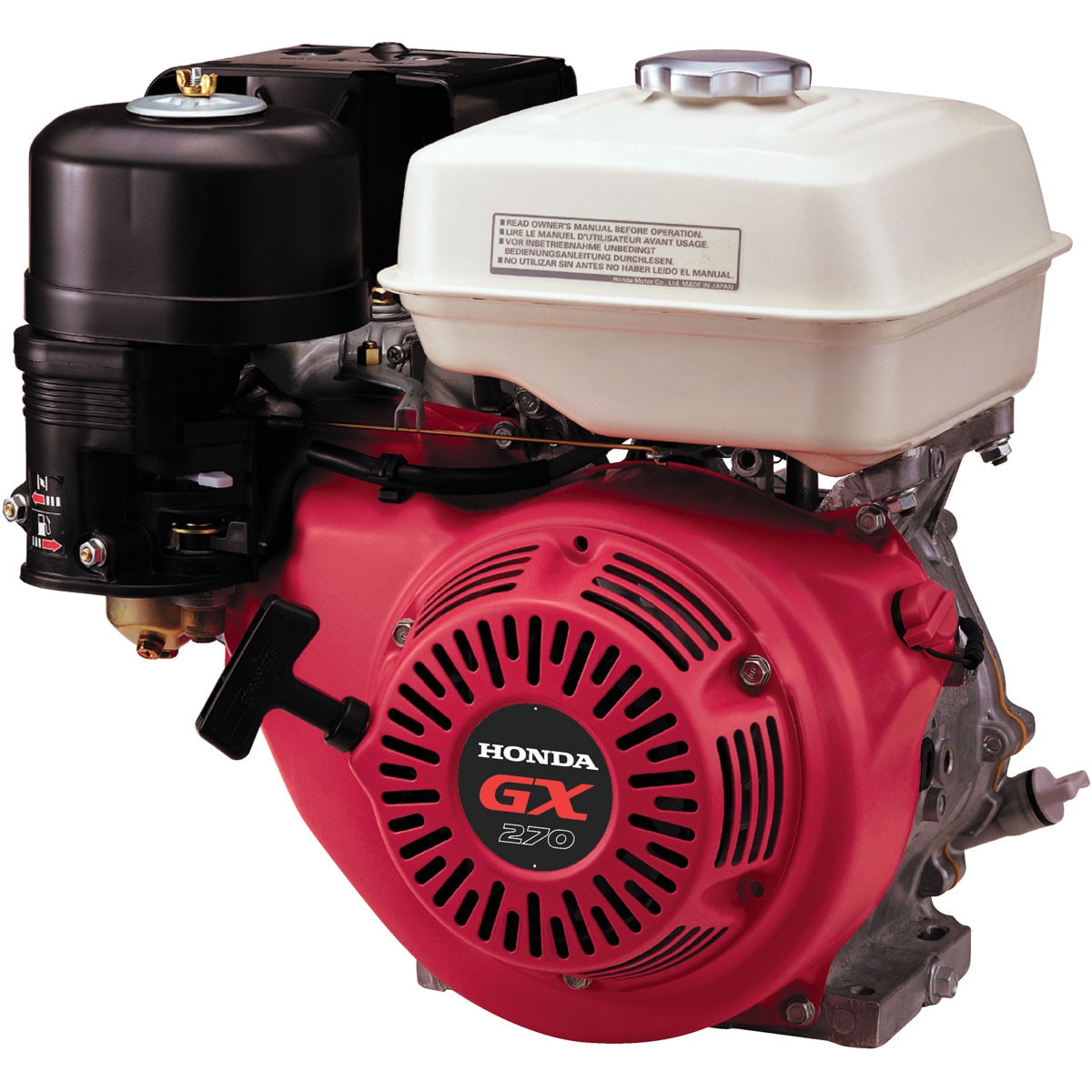

8.5 NET HP Honda Engine, 270 cc, 1" Crankshaft, Keyed & Tapped (GX270QH)
PRODUCT DETAILS
The GX Series has proven itself as one of the most rugged, easy-starting and reliable engines around. Trades people stake their livelihood on them day after day. With a wide range of selections there's a GX Series engine for almost any application. The GX270 continues to set the standard for exceptional power, fuel consumption and emissions for a wide range of lawn, construction and agricultural equipment.
- Horizontal crankshaft
- Digital CDI ignition system with variable timing
- Precision camshaft design for precise valve timing and optimal valve overlap
- Ball-bearing supported crankshaft for improved stability
- Dual oil drains and fill
- Multiple charging coil options
- Common Applications:
- Agricultural equipment
- Commercial lawn and garden equipment
- Construction/industrial equipment
- Generators
- Pressure washers
- Small vehicles
- Water pumps
- Tillers/cultivators
Specifications
| Model | GX270QH |
| Engine Type | Air-cooled 4-stroke OHV |
| Bore x Stroke | 77 mm x 58 mm |
| Displacement | 270 cc |
| Net Power Output* | 8.5 HP (6.3 kW) @ 3,600 rpm |
| Net Torque | 14.1 lb-ft (19.1 Nm) @ 2,500 rpm |
| PTO Type | Straight |
| PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
| PTO Diameter/Taper | 25.4mm (1") |
| PTO Bolt Size | 7/16-20 UNF |
| Centrifugal Clutch | No |
| Keyway | Yes |
| Compression Ratio | 8.5:1 |
| Fuel Tank Capacity | 5.3 litres (5.6 US qts) |
| Lamp/Charge coil options | 25W, 50W / 1A, 3A, 10A, 18A |
| Carburetor | Butterfly Float Type |
| Electric Starter | No |
| Recoil Starter | Yes |
| Remote Throttle | No |
| Lever Throttle | Yes |
| Oil Alert (Shutdown) | No |
| Ignition System | Digital CDI with variable ignition timing |
| Starting System | Recoil/electric |
| Lubrication System | Splash |
| Governor System | Centrifugal mass type |
| Air Cleaner | Dual element |
| Air Filter Type | Dual |
| Muffler | Standard |
| Oil Capacity | 1.1 litres (1.16 US qts) |
| Fuel | Unleaded 86 octane or higher |
| Dry Weight | 25 kg (55 lbs) |
