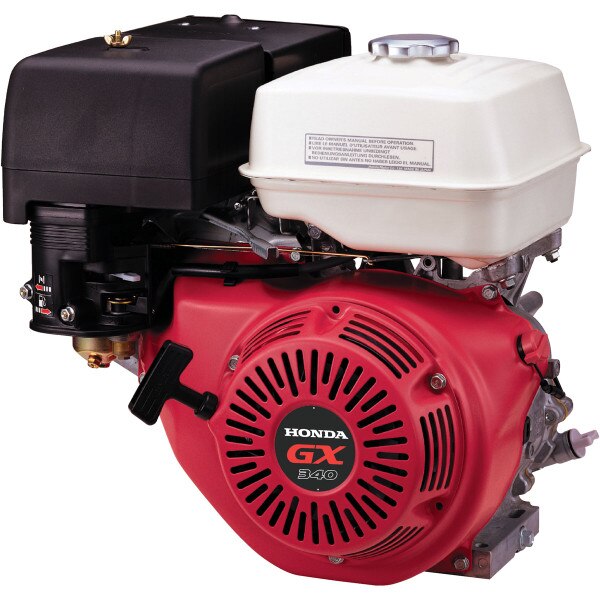

10.7 NET HP Honda Engine, 389 cc, 1" Crankshaft, Keyed, w/ Oil Alert (6 to 1 reduction) (GX340HX)
PRODUCT DETAILS
The GX Series has proven itself as one of the most rugged, easy-starting and reliable engines around. Trades people stake their livelihood on them day after day. With a wide range of selections there's a GX Series engine for almost any application. The GX270 continues to set the standard for exceptional power, fuel consumption and emissions for a wide range of lawn, construction and agricultural equipment.
- Horizontal crankshaft
- Digital CDI ignition system with variable timing
- Precision camshaft design for precise valve timing and optimal valve overlap
- Ball-bearing supported crankshaft for improved stability
- Dual oil drains and fill
- Multiple charging coil options
- Common Applications:
- Agricultural equipment
- Commercial lawn and garden equipment
- Construction/industrial equipment
- Forestry equipment
- Generators
- Pressure washers
- Small vehicles
- Water pumps
- Tillers/cultivators
Specifications
Model | GX340HX |
Engine Type | Air-cooled 4-stroke OHV |
Bore x Stroke | 88 mm x 64 mm |
Displacement | 389 cc |
Net Power Output* | 10.7 HP (8.0 kW) @ 3,600 rpm |
Net Torque | 19.5 lb-ft (26.4 Nm) @ 2,500 rpm |
PTO Type | Threaded |
PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
PTO Diameter/Taper | 1" |
PTO Bolt Size | M8 x 1.25 mm |
PTO Reduction | 6:1 |
Centrifugal Clutch | No |
Keyway | No |
Compression Ratio | 8.2:1 |
Fuel Tank Capacity | 6.1 litres (6.4 US qts) |
Lamp/Charge coil options | 25W, 50W / 1A, 3A, 10A, 18A |
Carburetor | Butterfly float type |
Electric Starter | No |
Recoil Starter | Yes |
Remote Throttle | No |
Lever Throttle | Yes |
Oil Alert (Shutdown) | Yes |
Ignition System | Digital CDI with variable ignition timing |
Starting System | Recoil/electric |
Lubrication System | Splash |
Governor System | Centrifugal mass type |
Air Cleaner | Dual element |
Air Filter Type | Dual |
Muffler | Standard |
Oil Capacity | 1.1 litres (1.16 US qts) |
Fuel | Unleaded 86 octane or higher |
Dry Weight | 31.5 kg (69 lbs) |
