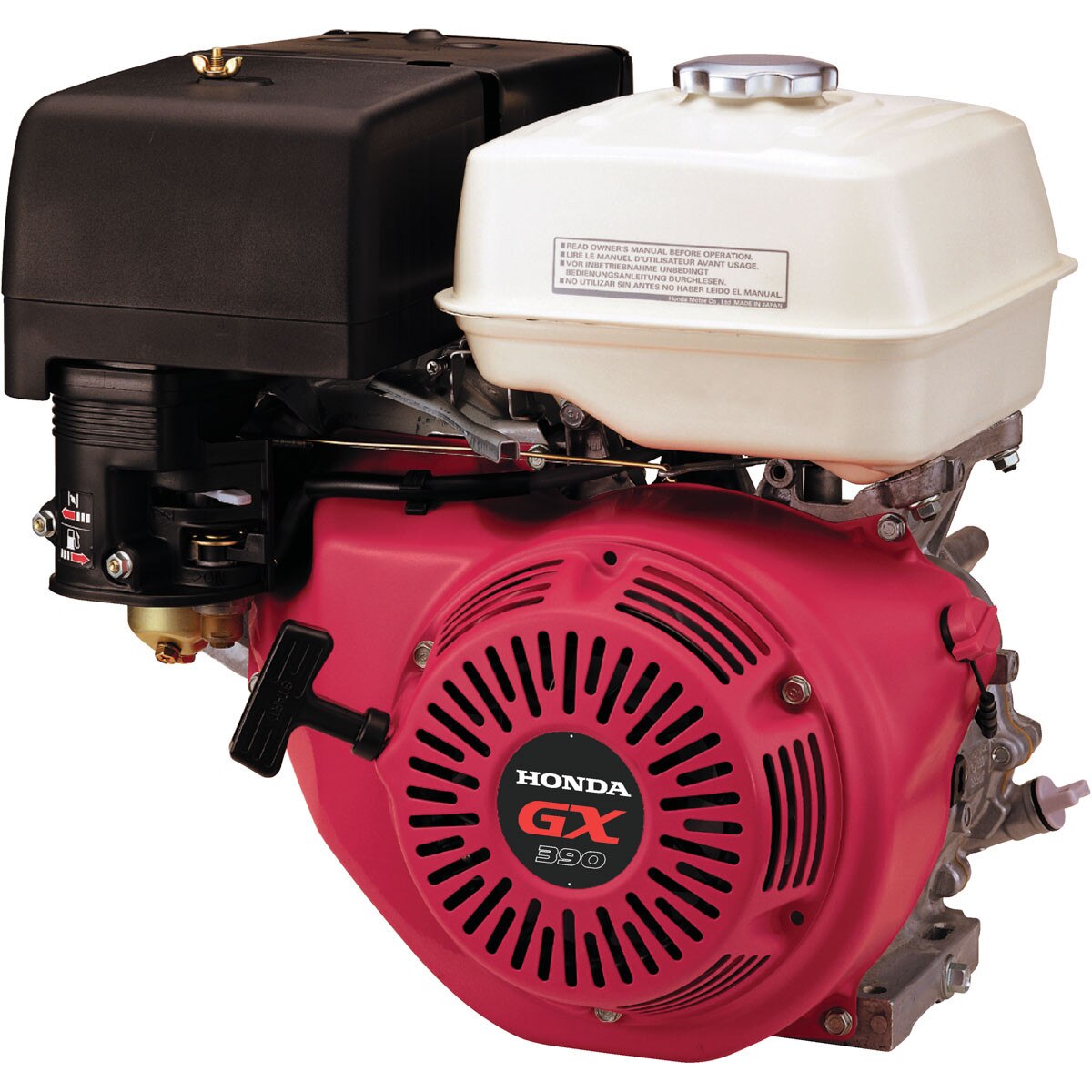

11.7 NET HP Honda Engine, 389 cc, 22.1 mm Crankshaft, Tapped, w/ Oil Alert & Electric Start (Generator use) (GX390VXE)
PRODUCT DETAILS
The GX Series has proven itself as one of the most rugged, easy-starting and reliable engines around. Trades people stake their livelihood on them day after day. Experience loads of power, impressive durability and exceptional fuel consumption with the GX390 - a great engine choice for water pumps, pressure washers, small vehicles and more.
- Horizontal crankshaft
- Digital CDI ignition system with variable timing
- Precision camshaft design for precise valve timing and optimal valve overlap
- Ball-bearing supported crankshaft for improved stability
- Dual oil drains and fill
- Multiple charging coil options
- Common Applications:
- Agricultural equipment
- Commercial lawn and garden equipment
- Construction/industrial equipment
- Forestry equipment
- Generators
- Pressure washers
- Small vehicles
- Water pumps
- Tillers/cultivators
Specifications
| Model | GX390VXE |
| Engine Type | Air-cooled 4-stroke OHV |
| Bore x Stroke | 88 mm x 64 mm |
| Displacement | 389 cc |
| Net Power Output* | 11.7 HP (8.7 kW) @ 3,600 rpm |
| Net Torque | 19.5 lb-ft (26.4 Nm) @ 2,500 rpm |
| PTO Type | Tapered |
| PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
| PTO Diameter/Taper | 22.1 mm / 3/16 |
| PTO Bolt Size | 5/16-24 UNF |
| Centrifugal Clutch | No |
| Keyway | No |
| Compression Ratio | 8.2:1 |
| Fuel Tank Capacity | 6.1 litres (6.4 US qts) |
| Lamp/Charge coil options | 25W, 50W / 1A, 3A, 10A, 18A |
| Carburetor | Butterfly float type |
| Electric Starter | Yes |
| Recoil Starter | Yes |
| Remote Throttle | No |
| Lever Throttle | Yes |
| Oil Alert (Shutdown) | Yes |
| Control Box c/w Ign.Switch | Yes (Red or Black) |
| Ignition System | Digital CDI with variable ignition timing |
| Starting System | Recoil/electric |
| Lubrication System | Splash |
| Governor System | Centrifugal mass type |
| Air Cleaner | Dual element |
| Air Filter Type | Dual |
| Muffler | Standard |
| Exhaust Deflector | No |
| Charge Coil | 1A |
| Regulator / Rectifier | Standard |
| Oil Capacity | 1.1 litres (1.16 US qts) |
| Fuel | Unleaded 86 octane or higher |
| Dry Weight | 31.5 kg (69 lbs) |
