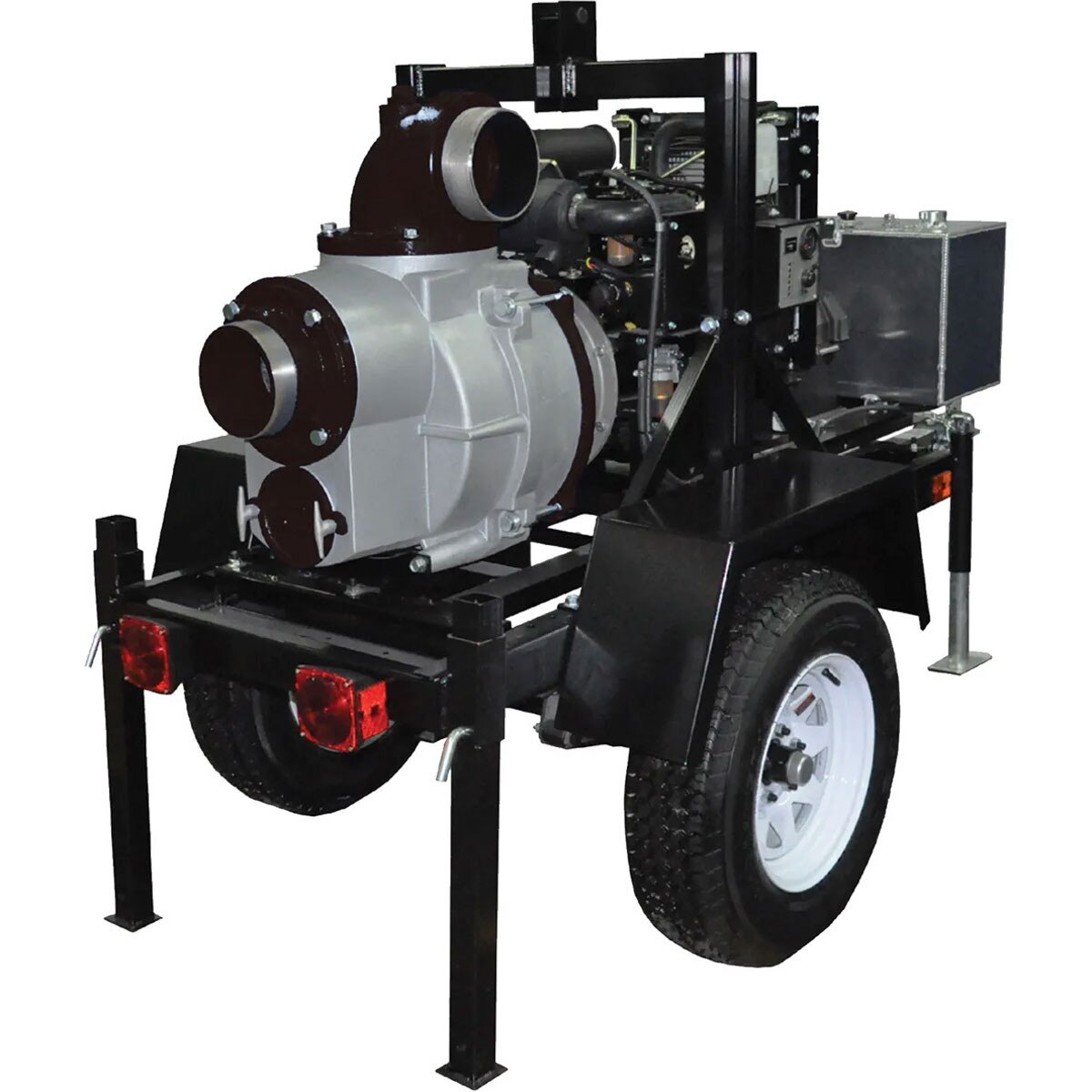

Trash Pump, Honda GX670 24 HP (KTH-150)
PRODUCT DETAILS
The Koshin KTH-150 Trailer Mounted Trash Pump is ideal for agricultural, construction and municipal/industrial applications and high volume suspended solids dewatering.
- 6in Trash Pump on Trailer
- 24HP 670cc Honda V-Twin
- Max Out 1000 GPM
- Max Head 98ft
- Great for Industrial, Construction, Landscape Municipal, Civil Engineering, and High Volume
- Silicon Carbide Mechanical Seals - Stainless Steel Impellers
- Solids Handling up to 3" in Diameter
- Easy to Remove Clean Out Cover
- Unique Pump End One Man Slide Mechanism Allows Pump Service without Removing Hoses
- Engines with Electric Start and Low Oil Shut Off
- Maximum Liquid Temperature of 180 Degrees F
- Tools Included for Pump Service
- D.O.T. Approved Trailer Standard (See your State and Local Codes for Registration)
- Pump Repair Parts Available Through KOSHIN
- Battery Not Includes (group size 24)
- One Year Warranty
Specifications
| Model | KTH-150 |
| Suction, Discharge Size | 6" NPT |
| Maximum Output | 1000 GMP |
| Maximum Discharge Head | 98 ft. |
| Maximum Suction Lift | 26 ft. |
| Maximum Pressure | 40 psi |
| Engine Model | Honda GX670 |
| Engine Displacement | 688 cc |
| Engine Horse Power | 23 HP |
| Fuel Tank Capacity | 20 gal. |
| Full Load Run Time | 9 hours |
| Fuel Type | Gasoline |
| Packaged Weight | 1000 lbs |
| Packaged Dimensions (LxWxH) | 77" x 55" x 65" |
