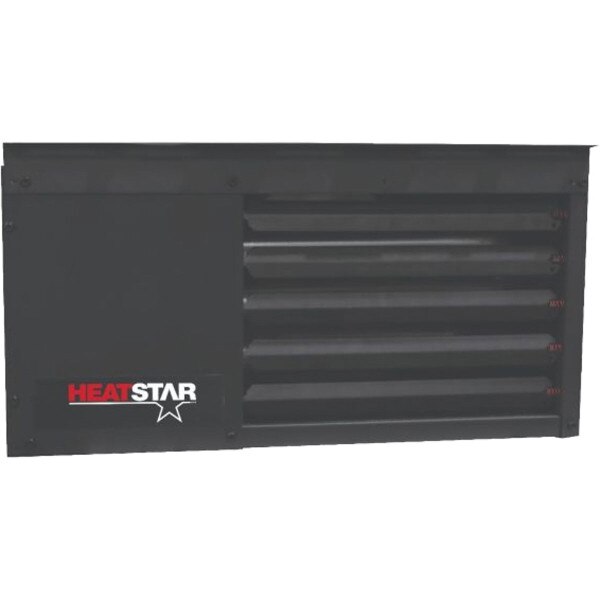

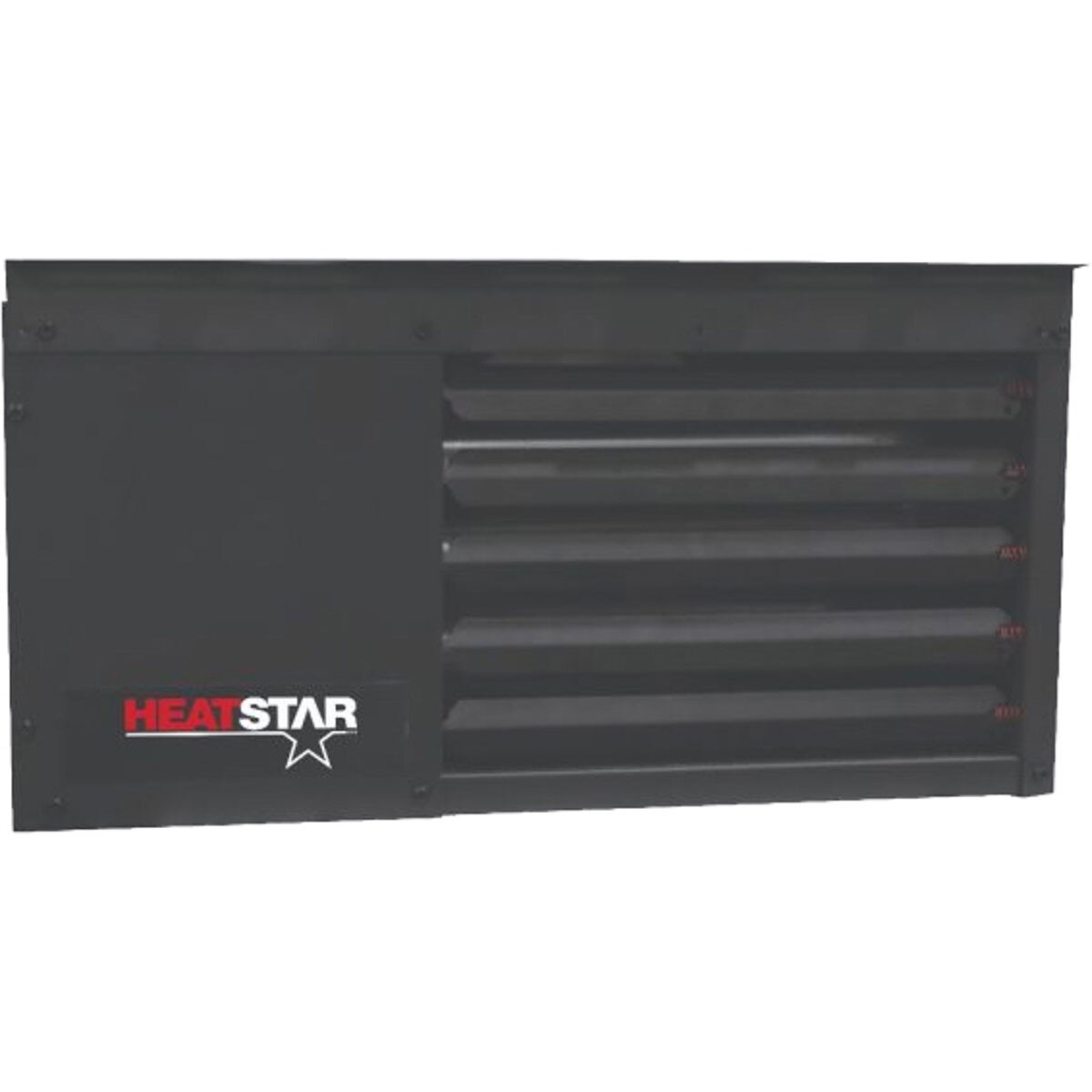

125,000 BTU Indirect Fired Utility Industrial Heater w/ Natural Gas to Propane Conversion Kit (HSU125NG / F160491)
PRODUCT DETAILS
If you are looking to turn your garage or barn into a workspace you can use all year-round, you will have to find a safe quiet and reliable heat source. The HeatStar HSU125NG 125,000 BTU Natural Gas Unit heater is the way to go. It uses a built-in electric high velocity fan to pull cool air into the rear of the heater, across a heat exchanger, then forcing warm air into the surrounding areas.
These heaters only require 115V AC power and can be vented vertically or horizontally - please check local codes and restrictions. With a mounting clearance of only 1 inch, the supplied brackets, external access to power, and thermostat connections - installation is a cinch. With the Durable Spark ignition and robust factory standard self-diagnostic control module, we can offer a 3 year factory warranty on all parts and burners and a 10 year warranty on any defects in the heat exchanger. This heater offers the operating versatility and safety that you have come to expect from HeatStar.
- 125,000 BTU per hour
- For use with natural gas
- Heats up to 4,167 sq.ft.
- Spark ignition features self-diagnostic control module
- Includes 2 angle brackets for ceiling mount
- Low Profile Design - Can be installed in low-ceiling buildings
- Minimum 8ft clearance from floor to base of heater required
- 1/2in gas connection
- Category 1 vertical, category 3 horizontal venting
- LP conversion Kit included
Specifications
Model | HSU125NG (F160491) |
Weight | 120 lbs |
Input BTU | 125,000 |
Heating Area (Sq Ft) | 4167 |
Electrical Rating | 110 vac |
Gas Inlet Connection | 1/2in |
Gas Inlet Pressure Min | 3.5in WC |
Gas Inlet Pressure Max | 14in WC |
Mounting Height Range | 8ft - 10ft |
Clearance to Combustibles: Horizontal | Above 1in; Behind 18in; Sides 1in |
Venting: Length Min/Max | 5ft - 25ft |
Venting: Exhaust | 4in Diameter |
Venting Direction | Horizontal or Vertical |
Heat Exchanger | Aluminized Steel Tubing |
Thermostat Optional | Sold Separately |
Fuel Type | Natural Gas or Propane |
Ignition | Electronic |
Item Length | 31.75" |
Item Width | 30" |
Item Height | 30.5" |
Warranty | 3 Year Limited |
