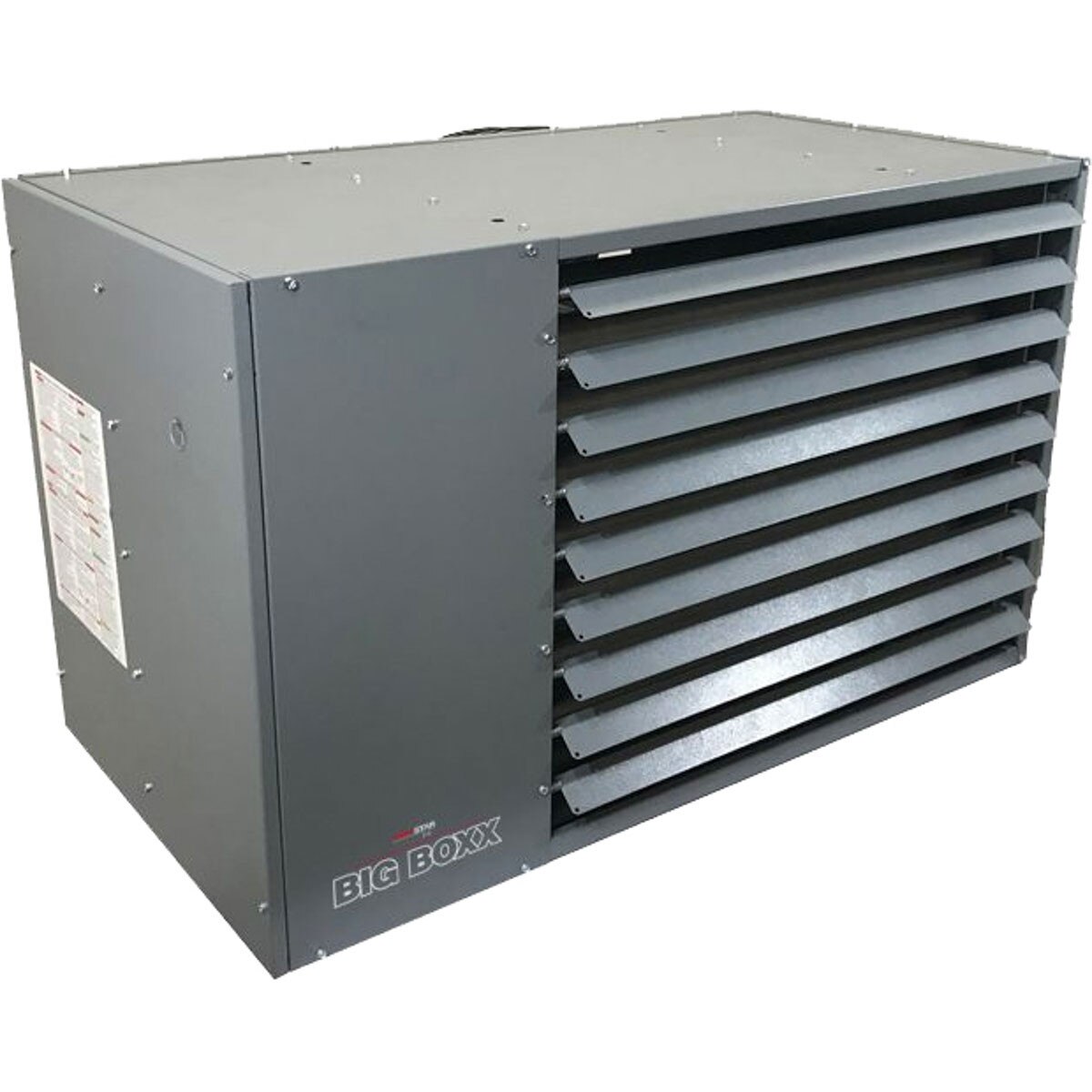

200,000 BTU Power Vented Unit Heater Aluminized Steel Natural Gas (Propane Conversion Kit Sold Separately) (HSU200NGPALP / F163063)

(0)No Reviews yet
SKU: F163063

PRODUCT DETAILS

The HeatStar HSU200NGPALP 200,000 BTU Power Vented Unit Heater provides big heat for big spaces. With 200,000 BTU heat, the heater spreads warmth through factories or warehouses up to 6,700 sq ft. A fan pulls air from the room to be heated, and the power vent system pumps exhaust out of the building through a single vent pipe. The design minimizes labor and makes for easy installation. Air louvers with three locking positions control the direction of the heat. Work in warmth with the HeatStar 200,000 BTU Power Vented Unit Heater.


  • Power vented units
  • Powder coated cabinet
  • 82% thermal efficiency
  • Air louvers with 3 locking positions
  • All models ship equipped for natural gas
    • (LP conversion kit sold separately)
  • Easily installs using 3/8-in -16 threaded rods (sold separately)
  • 3 Year Limited Warranty on parts
    • (Limited to 1 year in high humidity or caustic environments)
  • 10 Year Limited Warranty on aluminized steel heat exchanger
    • (Limited to 5 years when installed in corrosive environments)
  • 10 Year Limited Warranty on stainless steel heat exchanger

Specifications

ModelHSU200NGPALP (F163063)
Weight212 lbs
Input BTU200,000
Heating Area (Sq Ft)6,700
Electrical Rating110 vac
Gas Inlet Connection1/2in
Gas Inlet Pressure Min3.5in WC
Gas Inlet Pressure Max14in WC
Clearance to Combustibles: HorizontalAbove 6in; Behind 18in; Sides 6in
Venting: Length Min/Max5ft - 50ft
Venting: Exhaust4in Diameter
Venting DirectionHorizontal or Vertical
Heat ExchangerAluminized Steel Tubing
Thermostat OptionalNot Applicable
Fuel TypeNatural Gas
IgnitionElectronic
Item Length35"
Item Width40.5"
Item Height26.3"
Warranty10 year limited on aluminized steel heat exchanger (5 year when installed in corrosive environments)
