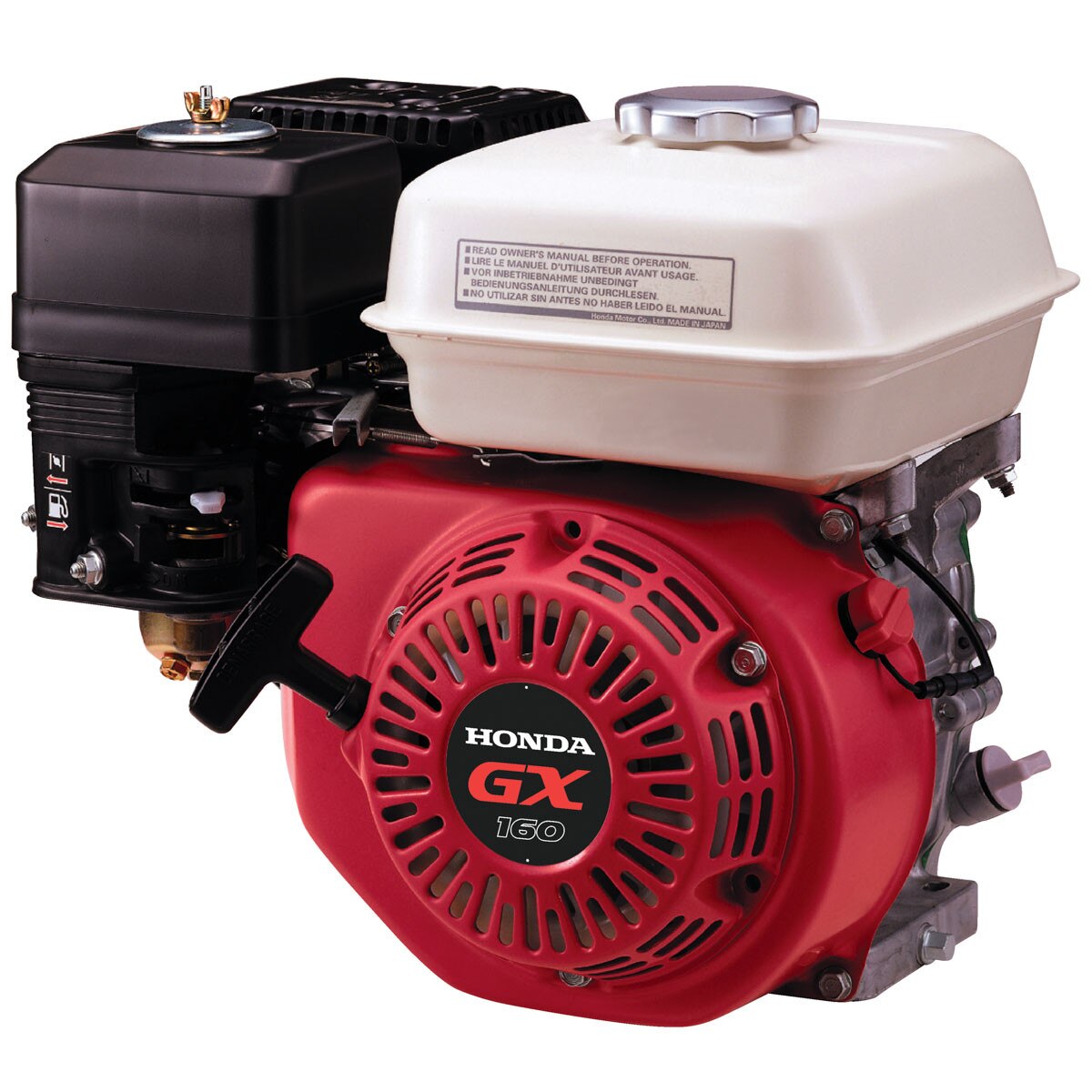

4.8 NET HP Honda Engine, 163 cc, 3/4" Crankshaft, Keyed & Tapped, w/ Oil Alert, oil bath air cleaner (GX160QA)
PRODUCT DETAILS
The GX Series has proven itself as one of the most rugged, easy-starting and reliable engines around. Trades people stake their livelihood on them day after day. With a wide range of selections there's a GX Series engine for almost any application. The GX160 is the perfect engine for a wide range of applications across forestry, agriculture, and industrial needs. It's also a truly reliable performer that delivers power and fuel efficiency.
- Horizontal crankshaft
- Precision camshaft design for precise valve timing and optimal valve overlap
- Ball-bearing supported crankshaft for improved stability
- Dual oil drains and fill
- Multiple charging coil options
- Large-capacity, multi-chamber exhaust system
- Common Applications:
- Agricultural equipment
- Commercial lawn and garden equipment
- Construction/industrial equipment
- Forestry equipment
- Generators
- Pressure washers
- Tillers/cultivators
- Water pumps
Specifications
| Model | GX160QA |
Engine Type | Air-cooled 4-stroke OHV |
Bore x Stroke | 68 mm x 45 mm |
Displacement | 163 cc |
Net Power Output* | 4.8 HP (3.6 kW) @ 3,600 rpm |
Net Torque | 7.6 lb-ft (10.3 Nm) @ 2,500 rpm |
| PTO Type | Straight |
PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
| PTO Diameter/Taper | 3/4" |
| PTO Bolt Size | 5/16-24 UNF |
| Keyway | Yes |
Compression Ratio | 9.0:1 |
Fuel Tank Capacity | 3.1 litres (3.3 US qts) |
Lamp/Charge coil options | 25W, 50W / 1A, 3A, 7A |
Carburetor | Butterfly |
| Recoil Starter | Yes |
| Lever Throttle | Yes |
| Oil Alert (Shutdown) | No |
Ignition System | Transistorized magneto |
Starting System | Recoil starter |
Lubrication System | Splash |
Governor System | Centrifugal mechanical |
Air Cleaner | Dual element |
| Air Filter Type | Oil Bath |
| Muffler | Arrester |
| Exhaust Deflector | Yes |
Oil Capacity | 0.58 litres (0.61 US qts) |
Fuel | Unleaded 86 octane or higher |
Dry Weight | 15.1 kg (33 lbs) |
