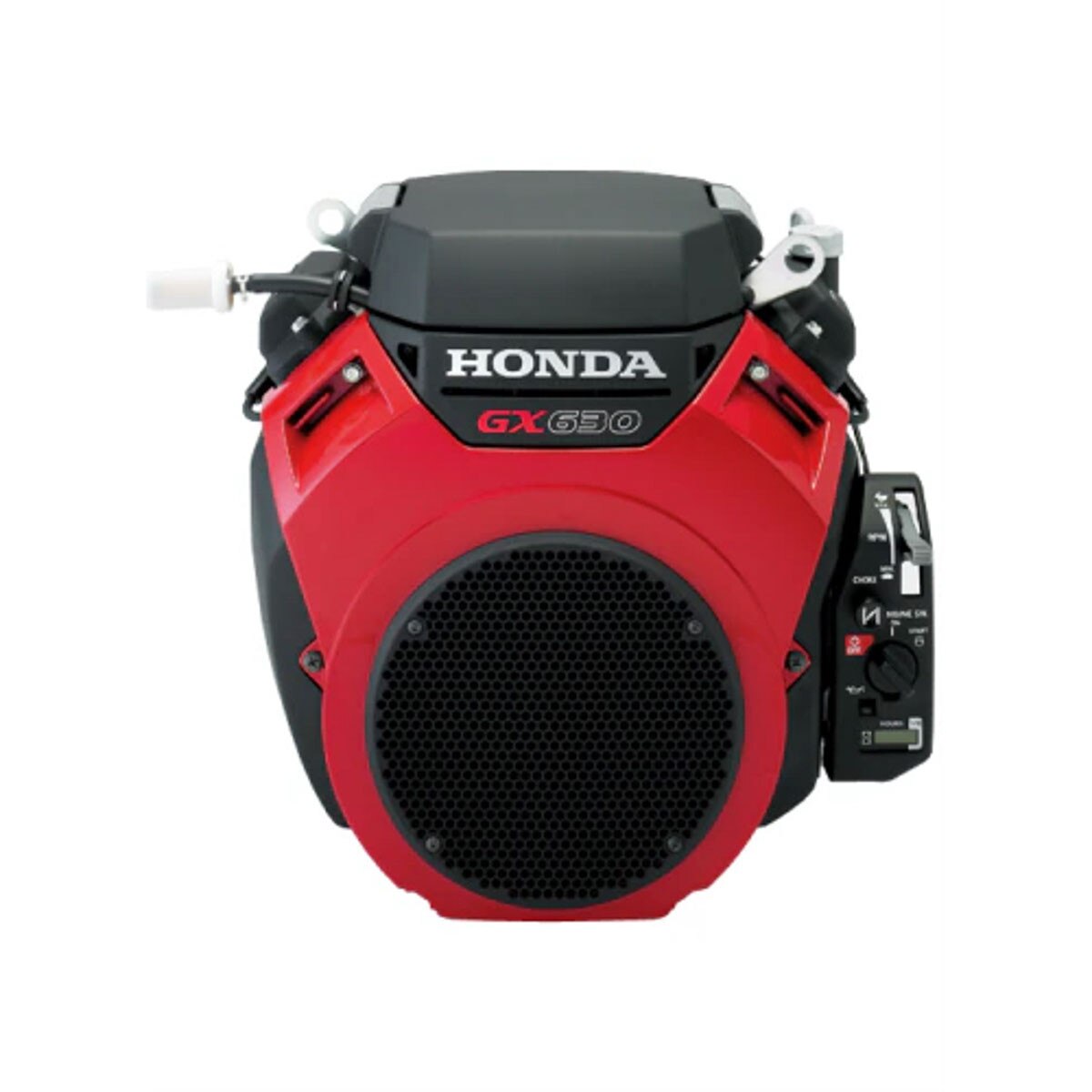

20.8 NET HP Honda Engine, 628 cc, V type tapered PTO, Electric Start. No fuel tank. Muffler available LH/RH (GX630VXE)
PRODUCT DETAILS
Does the V-Twin Series have it all? You be the judge. Compared to most other engines, you get greater fuel efficiency, higher horsepower, convenient controls and quieter operation. This is the engine that has raised the bar.
- Horizontal crankshaft
- Digital CDI ignition system with variable timing
- Hemispherical combustion chamber delivers rapid combustion
- Integrated cylinder and head
- High-capacity pump facilitates consistent oil delivery
- Automatic mechanical de-compression system
- Common Applications:
- Agricultural equipment
- Commercial lawn and garden equipment
- Construction/industrial equipment
- Forestry equipment
- Generators
- Pressure washers
- Small vehicles
- Water pumps
- Tillers/cultivators
Specifications
Model | GX630VXE |
Engine Type | Air-cooled 4-stroke OHV |
Bore x Stroke | 78 mm x 72 mm |
Displacement | 688 cc |
Net Power Output* | 20.8 hp (15.5 kW) @ 3,600 rpm |
Net Torque | 35.6 lbs ft (48.3 Nm) @2,500 rpm |
PTO Type | Tapered |
PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
PTO Diameter/Taper | 2 x 1/4 per ft. |
PTO Bolt Size | 5/16-24 UNF |
Centrifugal Clutch | No |
Keyway | Yes |
Compression Ratio | 9.3:1 |
Fuel Tank Capacity | N/A |
Lamp/Charge coil options | 2.7A, 17A, 26A |
Carburetor | Horizontal type, two barrel butterfly valve, internal vent |
Electric Starter | Yes |
Recoil Starter | No |
Remote Throttle | Yes |
Lever Throttle | Yes |
Lever Choke | Yes |
Oil Alert (Shutdown) | Yes |
Control Box c/w Ign.Switch | Yes |
Ignition System | Digital CDI with variable ignition timing |
Starting System | Electric |
Lubrication System | Forced lubrication |
Governor System | Centrifugal mechanical |
Air Cleaner | Dual element |
Air Filter Type | Dual (Round) |
Muffler | Separate High (L/R) |
Exhaust Deflector | No |
Charge Coil | 2.7A |
Regulator / Rectifier | STD (5A) |
Oil Capacity | 2.0 litres (2.1 US qts) |
Fuel | Unleaded 86 octane or higher |
Dry Weight | 44 kg (96.8 lbs) |
